51.2V 200ah Lithium LiFePO4 Battery Pack for forklifts

LFP cells ensure high safety. Utilizes a high-energy-density long blade LiFePO4 battery. Low-profile, low-center-of-gravity pack for type II forklifts

Features

Excellent Safety Features

The cells have passed multiple international certifications (IEC/UN/UL/GB), and are among the first to consistently pass the stringent nail penetration test for lithium batteries at the individual

Superior battery pack compatibility

Pack incorporates Blade Battery cells, achieving higher energy storage within a compact volume

Wide Temperature Range for Diverse Needs

Charging temperature: 0~50°C, Discharging temperature: -20~55°C, suitable for a wider range of application scenarios

Specifications

Items	Parameters
Nominal Voltage	51.2 V
Nominal Capacity	200 Ah
Combination Method	2P16S
Nominal Energy	10.24 kWh
Dimensions(LengthWidthHeight)	945×330×260 mm
Weight	115 ± 5% kg
Working Voltage Range	40~58.4 V (2.5~3.65 V/cell)
Cell Model	C103F
Maximum Continuous Charge Current	100 A(0.5C)(Referring to charge strategy)
Maximum Continuous Discharge Current	100 A(0.5C)(Referring to discharge MAP)
Maximum Peak Discharge Current	200 A(1C)(25℃/10s/SOC range referring to discharge MAP)
Short-Term Storage Ambient Temperature	-20~40℃ (20 ~ 60% SOC)
Long-Term Storage Ambient Temperature	-20~35℃ (30 ~ 60% SOC)
Operating Temperature	Charge temperature: 0~50℃ / Discharge temperature: -20~55℃
Thermal Management Method	Heating: heating film(optional)
IP Rating	IP67
Communication Protocol	CAN

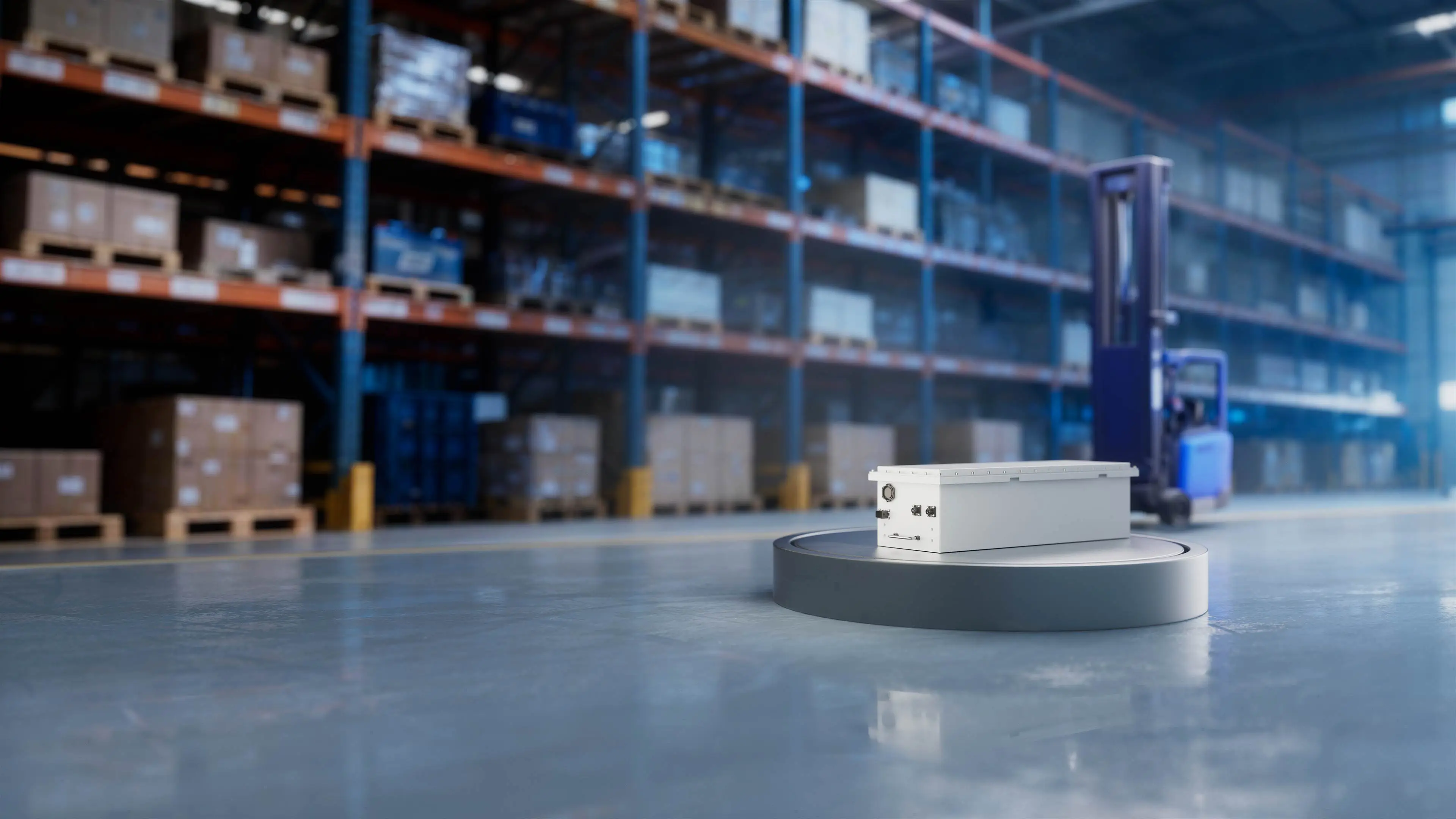

51.2V 200Ah lithium forklift battery pack
