Home > LiFePO4 Batteries & LiFePO4 cells>LFP71173205E-280Ah LiFePO4 Battery Cell With 6000 Cycles

LFP71173205E-280Ah 3.2V 280Ah 896Wh LiFePO4 Battery Cell With 6000 Cycles

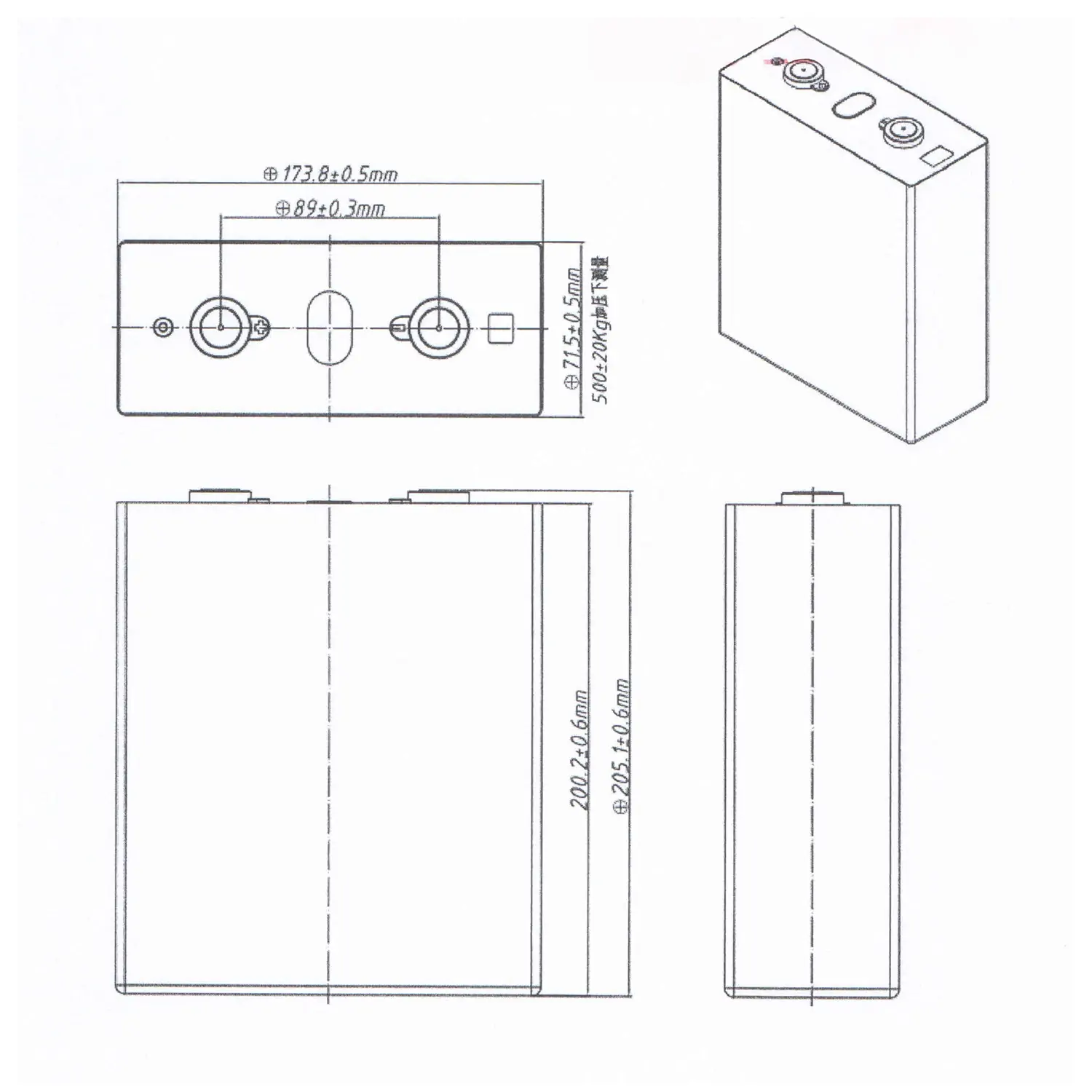

280ah lifepo4 batterybattery dimension of 280ah lifepo4 cell

Safety, low resistance and self-discharge, High energy efficiency, High Specific Energy long cycle life


Item

Specification

Rated capacity

280ah

Nominal voltage

3.2V

AC impendence

0.18m

Cell weight

5.5kg

Standard charge current

0.5C

Maximum continuous charging current

1C

Standard discharge current

0.5C

Maximum continuous discharge current

1C

Peak pulse discharge current

3C, 252, 50% SOC, 30s

Operating voltage

2.5~3.65V(T0), 2.0~3.65V(T0)

Operating temperature range

Charge: 0~50, discharge: -20~55

Cell dimension(W*H*T)

173.8*205.1*71.5mm

Cycle life

6000cycles @80%DOD
