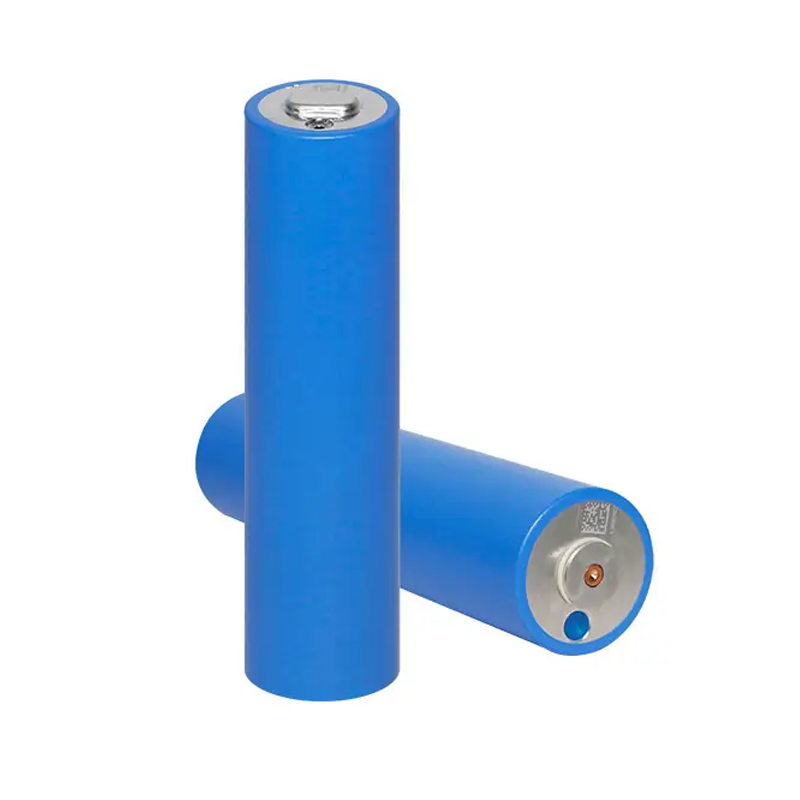

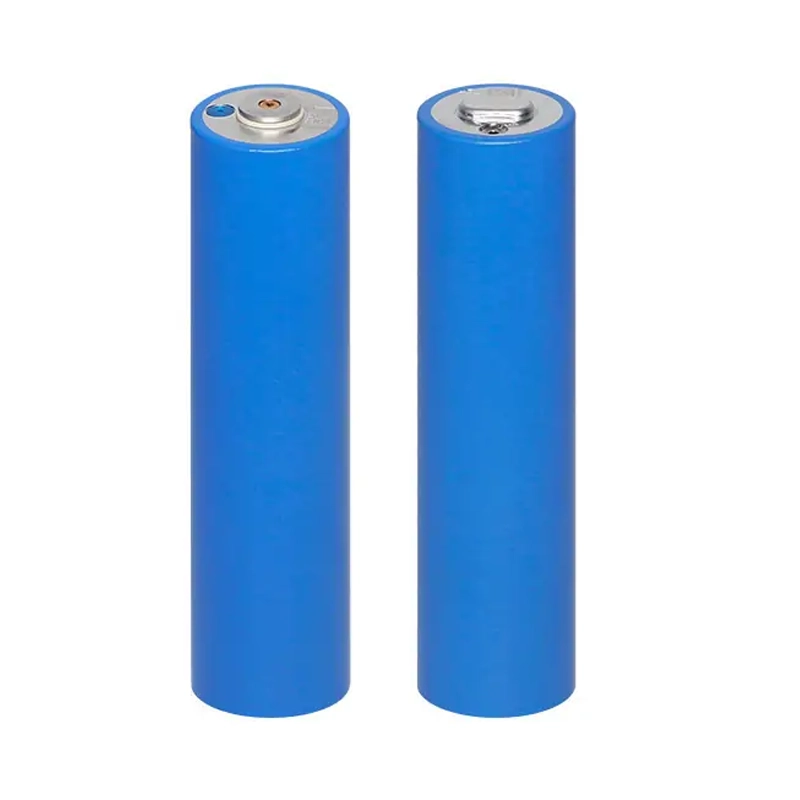

EVE 33140 3.2V 15Ah Cylindrical LiFePO4 Battery Cell

Reliable Power: LiFePO4 Battery & LiFePO4 cells

eve 33140 15ah lifepo4 lfp cell with features of high energy density, high discharge rate, fast charge, and long cycle life.

Individual pricing for large scale projects and wholesale demands is available.

Mobile/WhatsApp/Wechat: +86 156 0637 1958
Email: info@evlithium.com

Description

Features

High-energy density: up to 285wh/kg
High rate discharge: capable of maximum 50A continuous discharge, and 100A at pulse discharge
Fast charging: up to 8A charging
Long cycle life at room temperature: meet the requirements of long operating life
High-safety: Pass C8, UL, UL1642, UN38.3
Excellent high tempeeature and low temperature cycle: betwwen 0~55℃

Parameters

Items	Specification
Average capacity@3.65~2.5V	15200mah @0.33C discharge
Minimum capacity@3.65~2.5V	14500mah @0.33C discharge
AC-Internal resistance	≤3mΩ
DC-Internal resistance	≤8mΩ
End-of-charge voltage	3.65V
End-of-charge-current	750mA @0.05C
End-of-discharge voltage	2.5V T>0℃，2.0V T≤0℃
Nominal voltage	3.2V
Standard charging current	7500mA (0.5C)
Fast charge	15000mA (1C)
Standard discharge current	7500mA (0.5C)
Max. continuous discharge current	4500mA (3C)
Operating temperature range	Charging: 0~55℃, Discharging: -20~60℃
Dimension	33.4±0.3mm*140.5±0.5mm
Weight	267±6g

c33 33140 15ah lifepo4 battery details

Packing details of 33140 Cylindrical LiFePO4 Battery Cell

33140 cylindrical lifepo4 cell

shipment of eve 33140 lifepo4 cell
