Customized 36V14Ah lifepo4 battery pack to UK

Recently we shipped a 36V14Ah lifepo4 battery pack to our British customer for ebike.

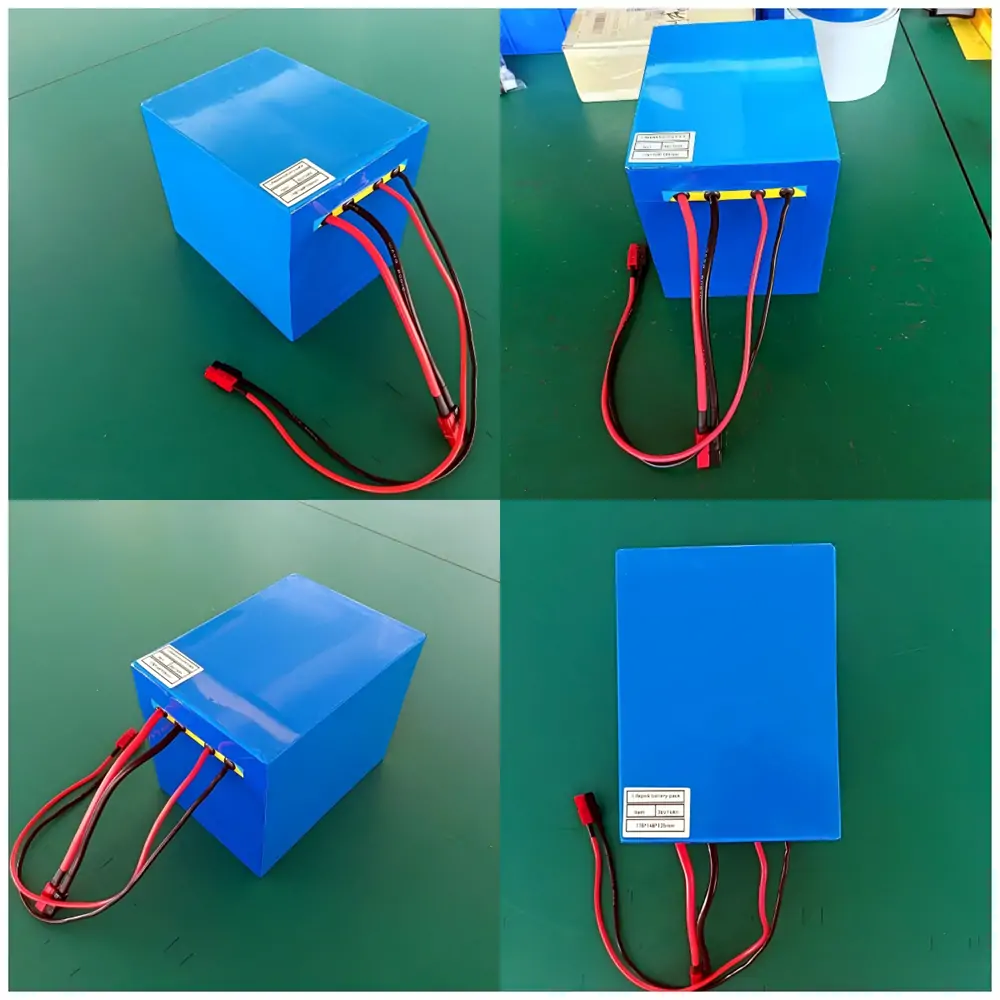

The 36V14Ah battery pack is with a shrink wrapped because it can fit into a box on the rear of his bike.

36V14Ah lifepo4 can support 30 amp continuous discharge current and max 60A peak discharge current.

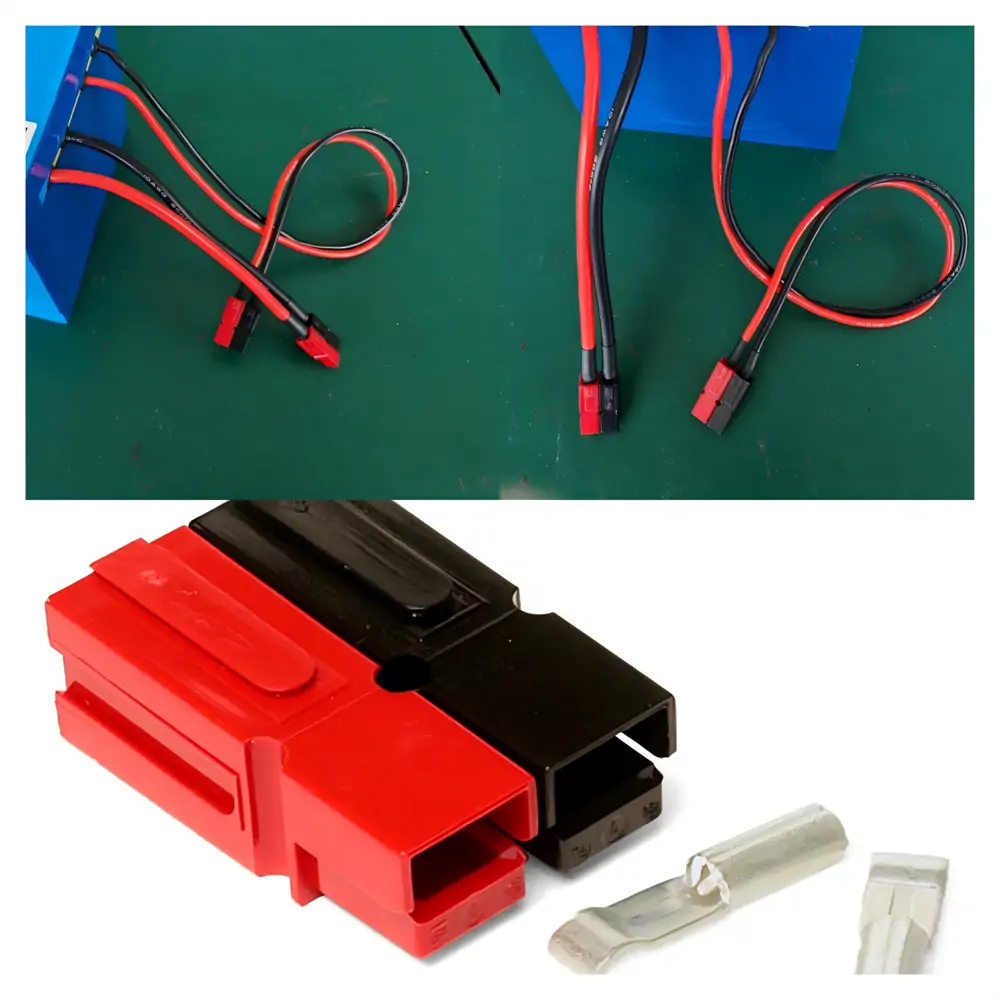

The discharge and charge plugs information is as below:
10AWG silicone discharge cable with 45A Anderson plug, 150mm length
14AWG silicone charging cable with 15A Anderson plug, 400mm length

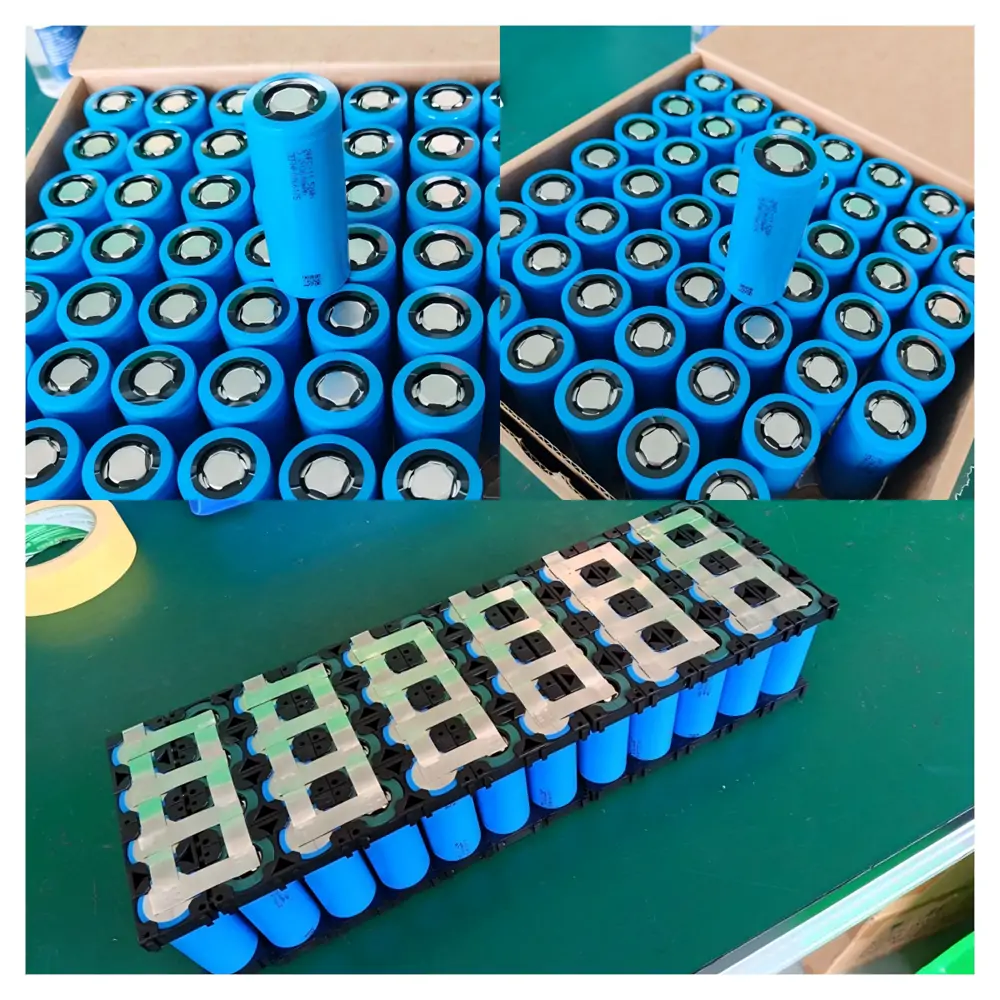

We used 26650 3.2V 3600mAh with 12S4P configuration.
The 26650 3.2V 3600mAh can support 3C continuous discharge and 4000time life cycles under 80% DOD.

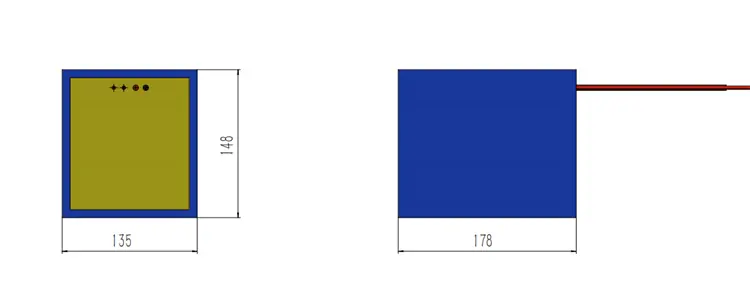

Here is dimension of the battery pack:

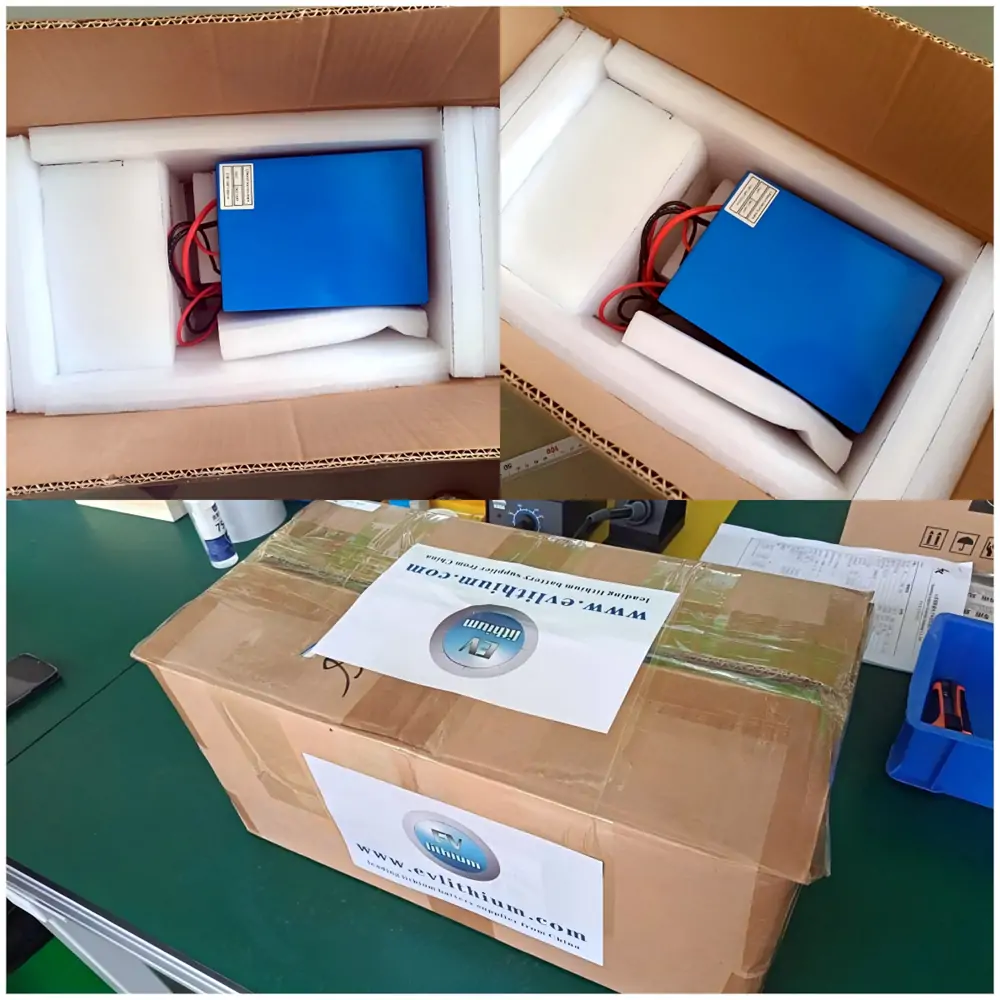

The battery was packaged in cartons with foam padding to prevent damage during transportation.

As agreed with the customer, we shipped the battery by air via special line with DDP service and our customer will received it within 2months.
