Customized 24V LTO battery packs to Estonia

Recently, we designed 24V10Ah and 24V20Ah LTO battery packs for our Estonian customer.
The battery packs are used as a bridging/buffer battery for the inverter and an unstable secondary DC power source.

Battery 1:

Battery Type:    Lithium titanate oxide (LTO)
Nominal Voltage:    24V
Capacity:    Minimum 200 Wh (~10 Ah)
Discharge current    Minimum 40 A
Charge current    Minimum 40 A
Weight:    Maximum 10 kg
Charging Temperature:    -30 C to +50 C
IP rating:    Minimum IP54
BMS communication (Optional):    CAN

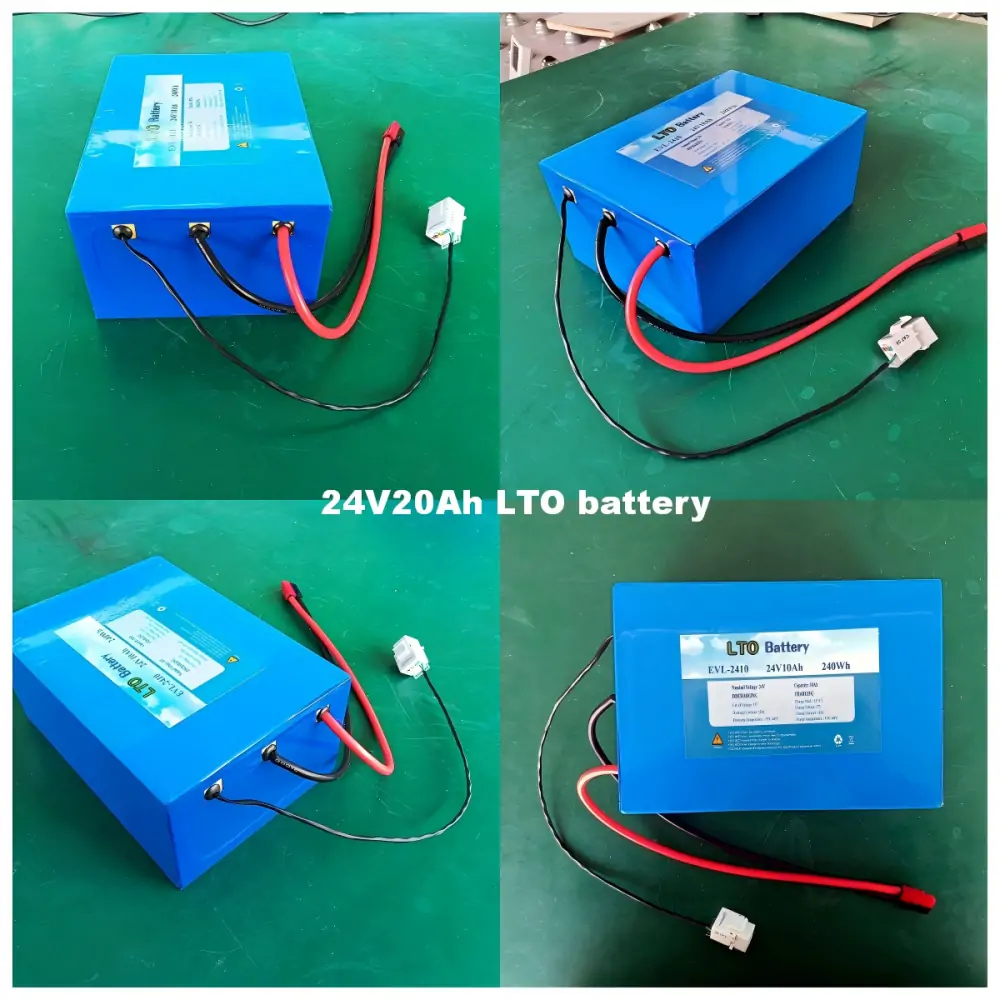

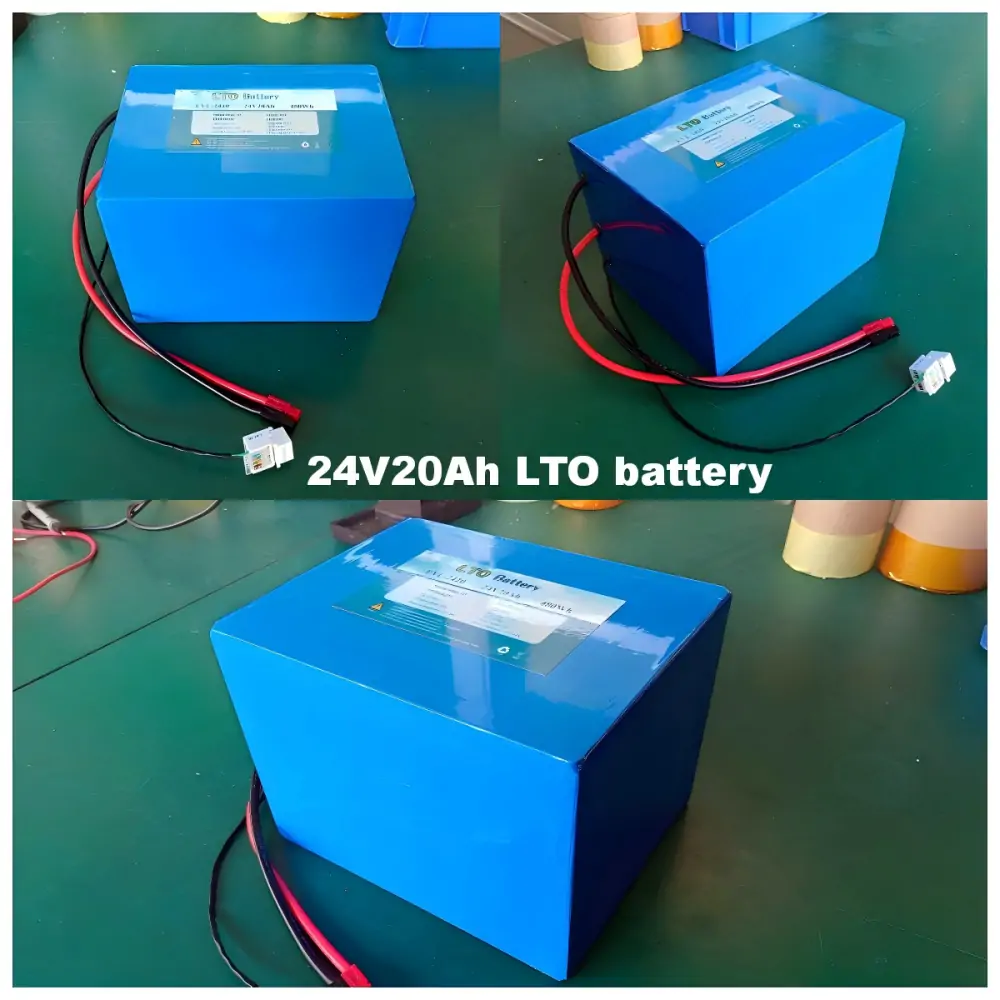

Battery 2:

Battery Type:    Lithium titanate oxide (LTO)
Nominal Voltage:    24V
Capacity:    Minimum 450 Wh (~20 Ah)
Discharge current    Minimum 40 A
Charge current    Minimum 40 A
Weight:    Maximum 15 kg (optional below 10 kg)
Charging Temperature:    -30 C to +50 C
IP rating:    Minimum IP54
BMS communication (Optional):    CAN

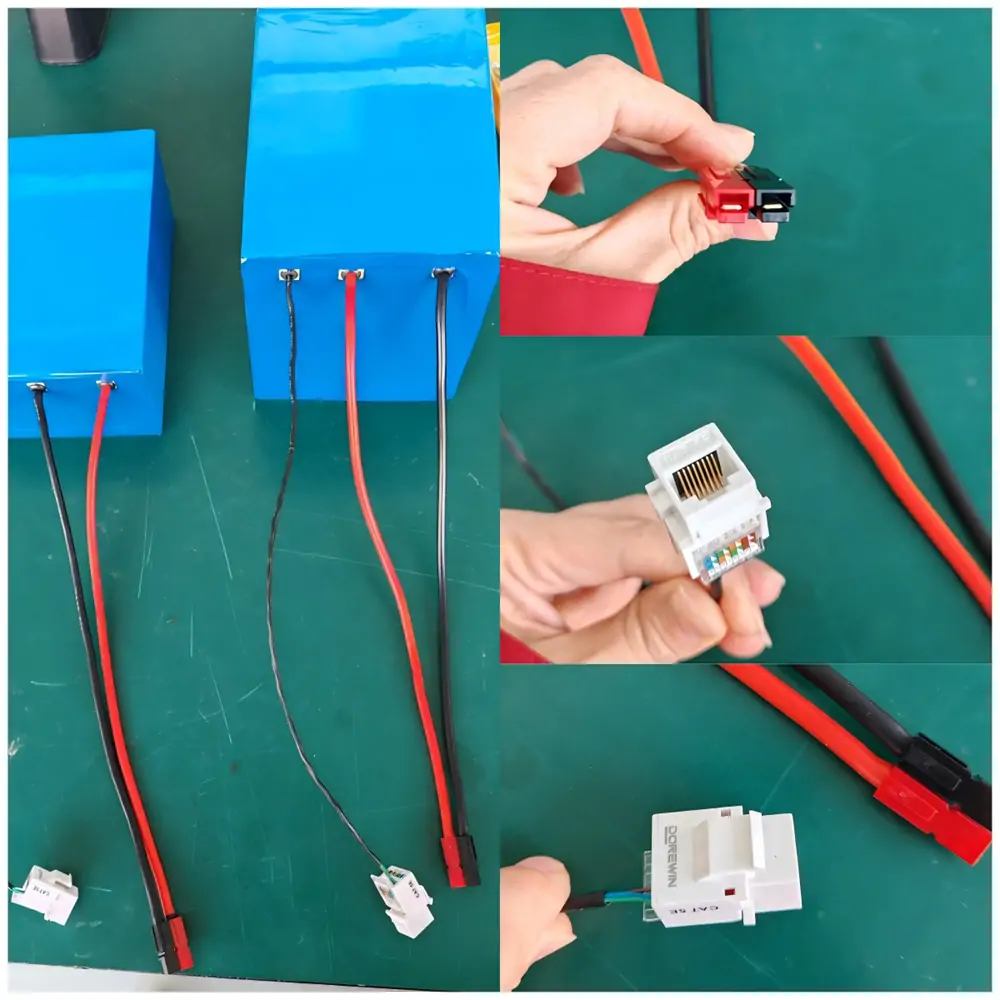

The connectors and cables length are following customer's requirement as below:
Cables: we would like a 30cm cable with:
Anderson 45A Red connector 1327-BK
Anderson 45A black connector 1327G6-BK
CAN should be in RJ45 port

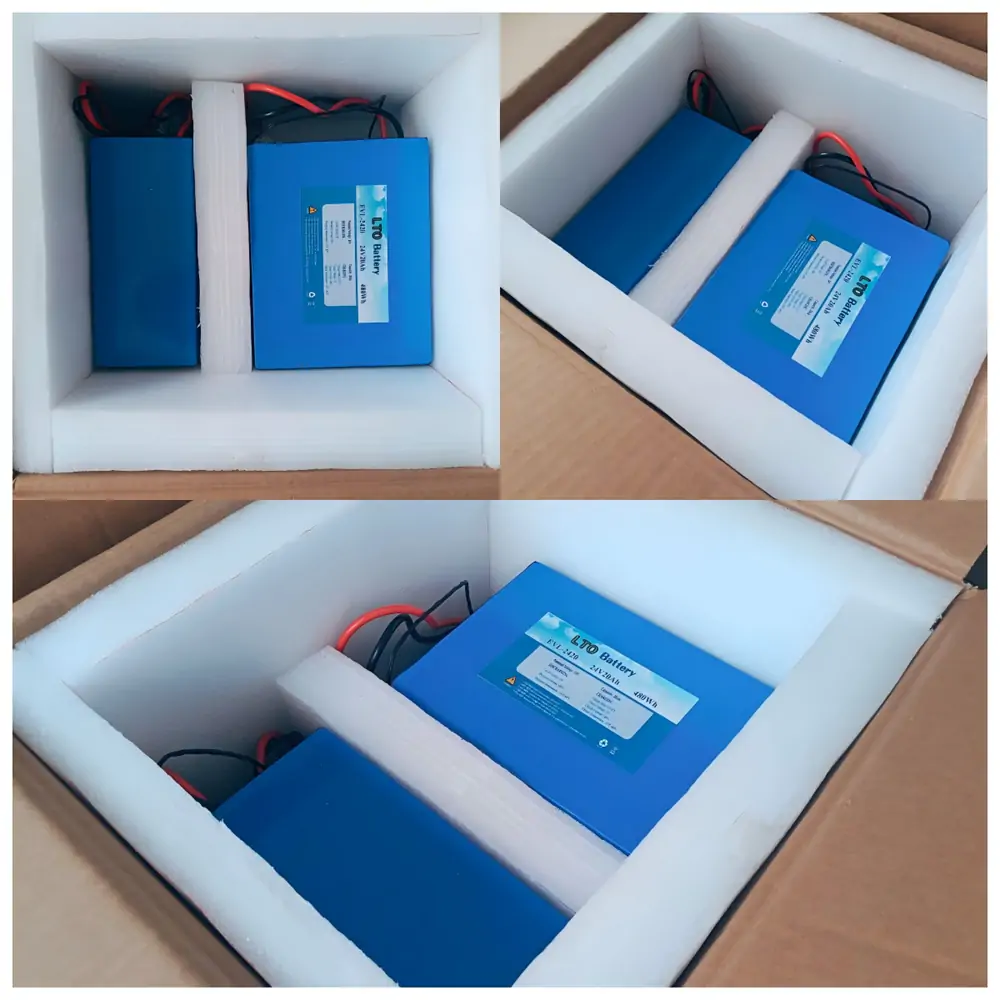

We securely packed each cell in cartons with custom-cut sponge inserts for optimal protection.

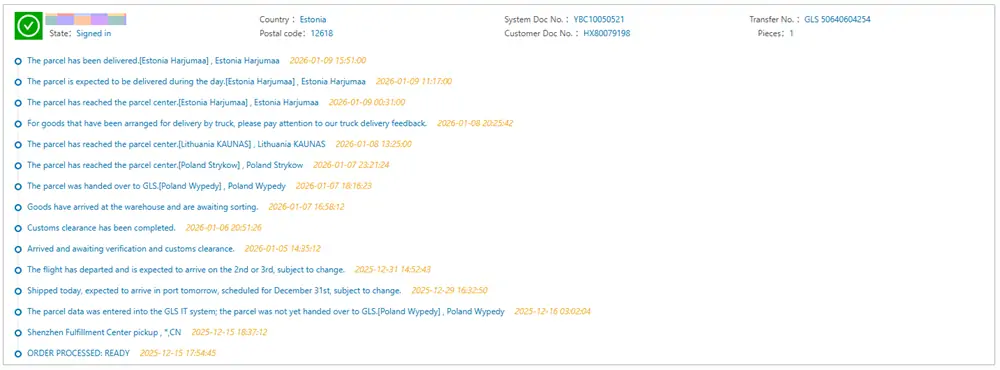

The shipment was sent via air freight, and we are pleased to confirm successful delivery to our customer.
