3.6V 3500mah N18650CR-35E 18650 lithium ion battery cell

Hot Product
3.6V 3500mAh N18650CR-35E 18650 lithium ion battery cell with excellent low-temperature performance, 1C charge, 3C discharge rate for Military devices, low-temperature devices, etc.

Individual pricing for large scale projects and wholesale demands is available.


Mobile/WhatsApp/Wechat: +86 156 0637 1958
Email: info@evlithium.com

Description

Features

  • Stable Safety
  • Long Endurance
  • Long Cycle Life
  • High Environmental Adaptability(-40¡æ ~ 60¡æ)

Specifications

Model N18650CR-35E(Low Temperature)
Materials Hi-Ni
Dimension(mm) Diameter: 18.40±0.15
Height: 64.85±0.25
Nominal Voltage (V) 3.6
Typical Capacity (Ah)(0.2C) 3.5
Limited charging voltage (V) 4.2
End of discharge voltage (V) 2.5
Standard charge current 0.5C
Standard discharge current 0.2C
Internal Resistance (mΩ) 20
Cell Weight (g) 47
Max Charge Current 1C
Max Discharge Current 3C
High-Low Temperature Discharge
(Vs 25¡æ)		 -40¡æ/25¡æ:74%,-20¡æ/25¡æ:84%,
-10¡æ/25¡æ:88%,0¡æ/25¡æ:92%,
10¡æ/25¡æ:95%,25¡æ/25¡æ:100%,
45¡æ/25¡æ:102%,60¡æ/25¡æ:102%
Operating Temperature Range
(Cell Surface)		 Charge: 0¡«55¡æ
Discharge: -40¡«70¡æ
Safety Certificate GB/UN/UL/CB/PSE/BIS/BSMI

Details

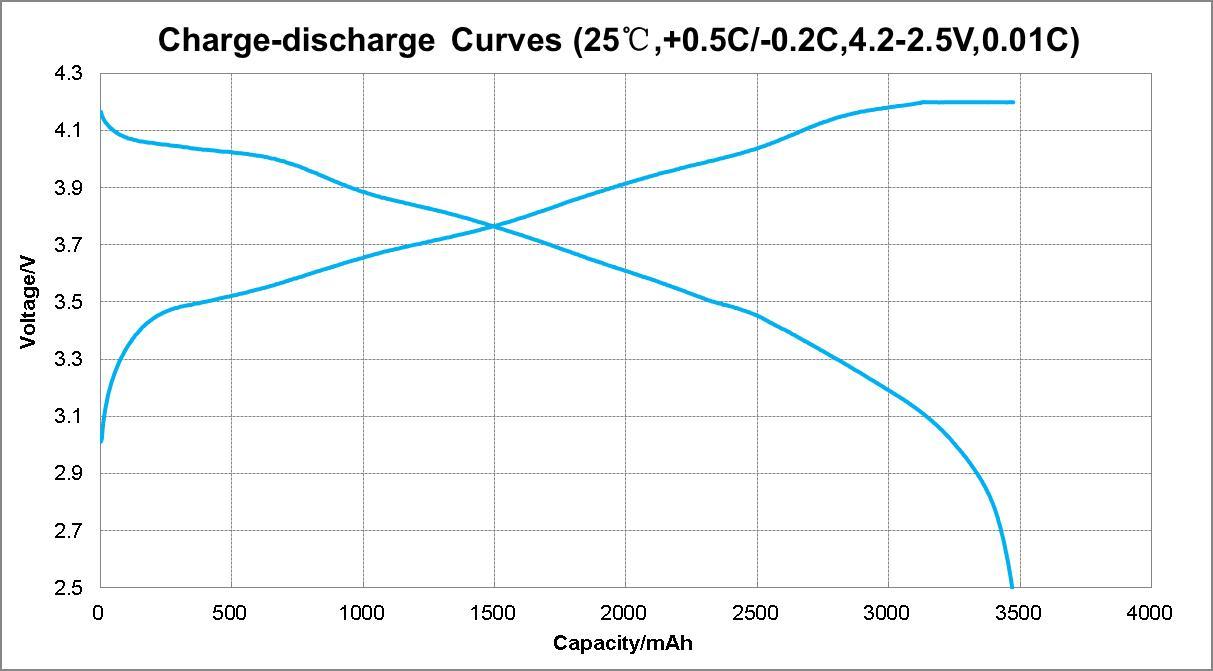

Standard Charge-Discharge Curves

Standard Charge-discharge Curves

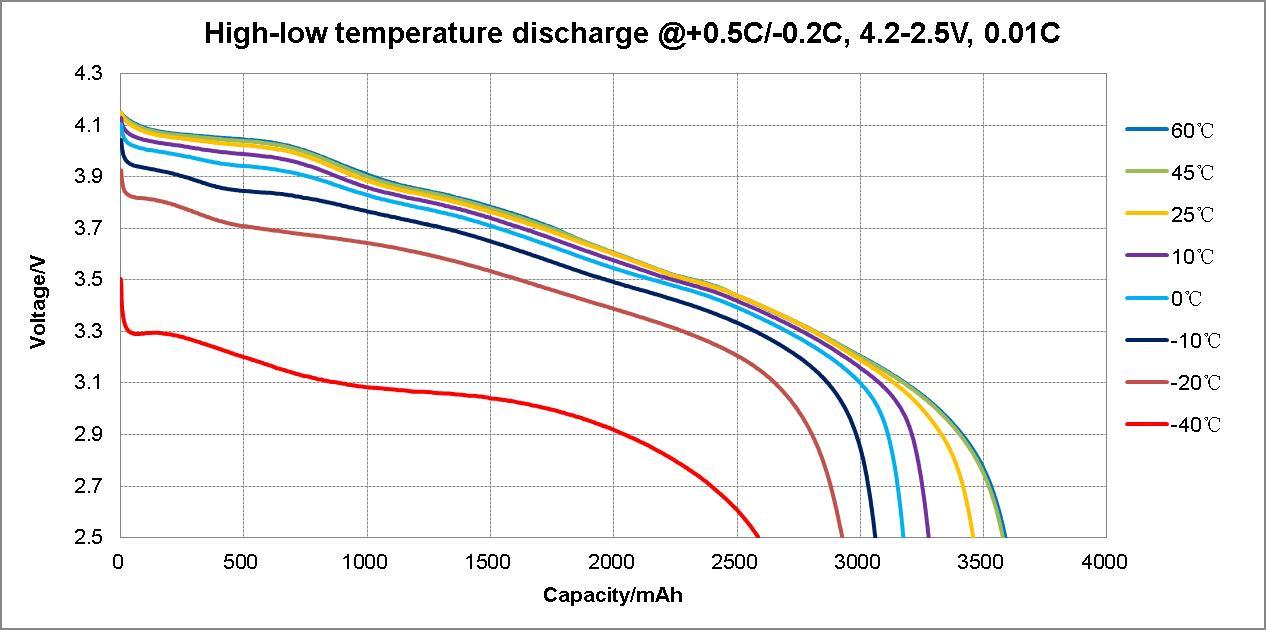

High-Low Temperature Discharge Characteristics

High-Low Temperature Discharge Characteristics

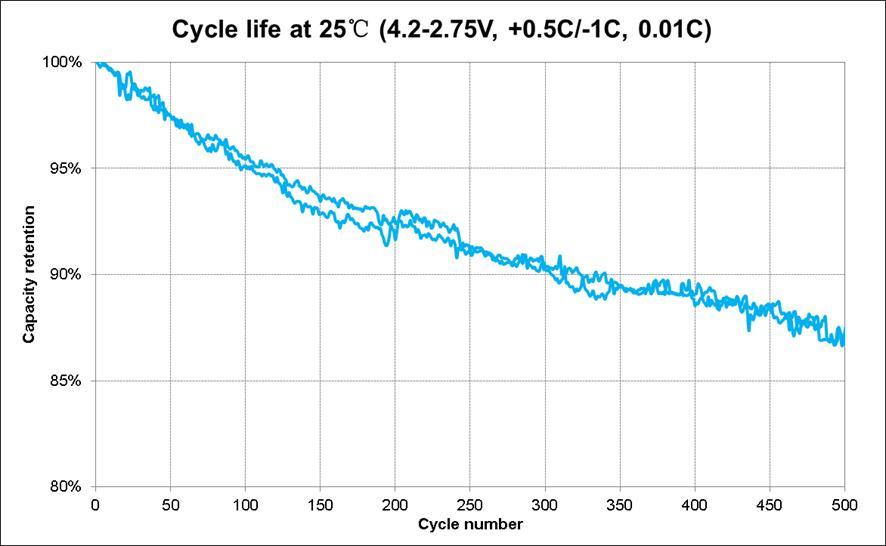

Cycle Life

cycle life
