High safety
· The cells have passed UL, IEC, and other international certifications.
· Cell safety tested
· Lithium iron phosphate (LFP) chemistry for maximum safety and longevity
Strong environmental adaptability
· Can be discharged in -20¡æ~55¡æ environment
Good storage performance
· 25¡æ storage for 28 days, capacity recovery rate ≥95%;
Long warranty
100% process traceability
· Empowering each battery cell;
100% automated production
· High precision, high efficiency, to ensure the consistency of the battery cells

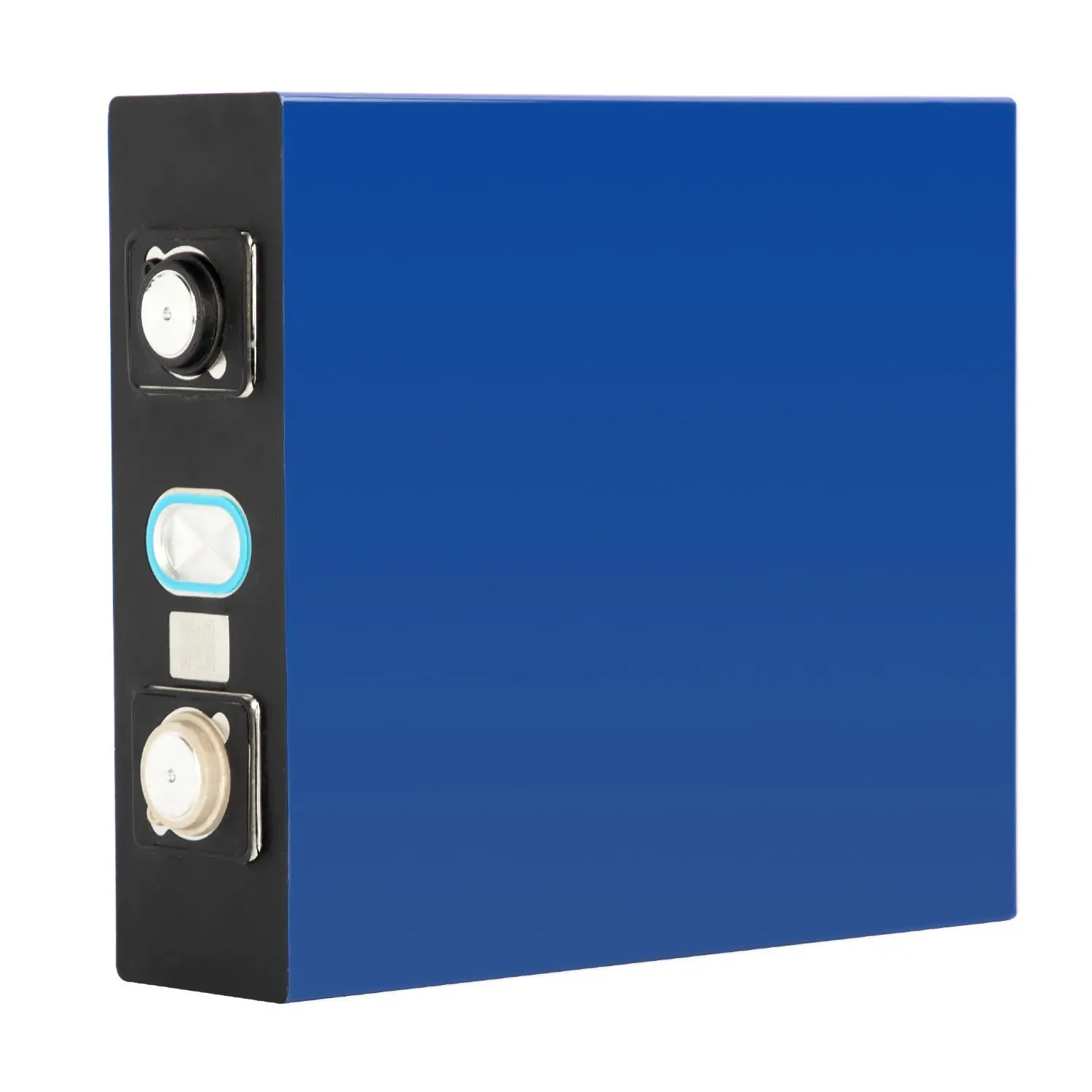

| Items | Specifications |
|---|---|
| MODEL NUMBER | LP54173210 |
| Nominal Voltage | 3.2V |
| Rated Capacity | 230Ah |
| Internal Resistance(1KHz) | ≤0.25mΩ |
| Standard charge and discharge current | 0.5C/0.5C |
| Standard charge and discharge cut-off voltage | 3.65V/2.5V |
| Max. charge and discharge current (Continued) | 1C/1C |
| Max. pulse charge and discharge current(60s) | 2C/2C |
| Recommended SOC usage range | 10%-90% A. |
| Charge operating temperature | 0¡æ~55¡æ |
| Discharge operating temperature | -20¡æ~55¡æ |
| Dimensions W/H/D (mm) | 173*210*54mm |
| Weight (kg) | 4.14 |
