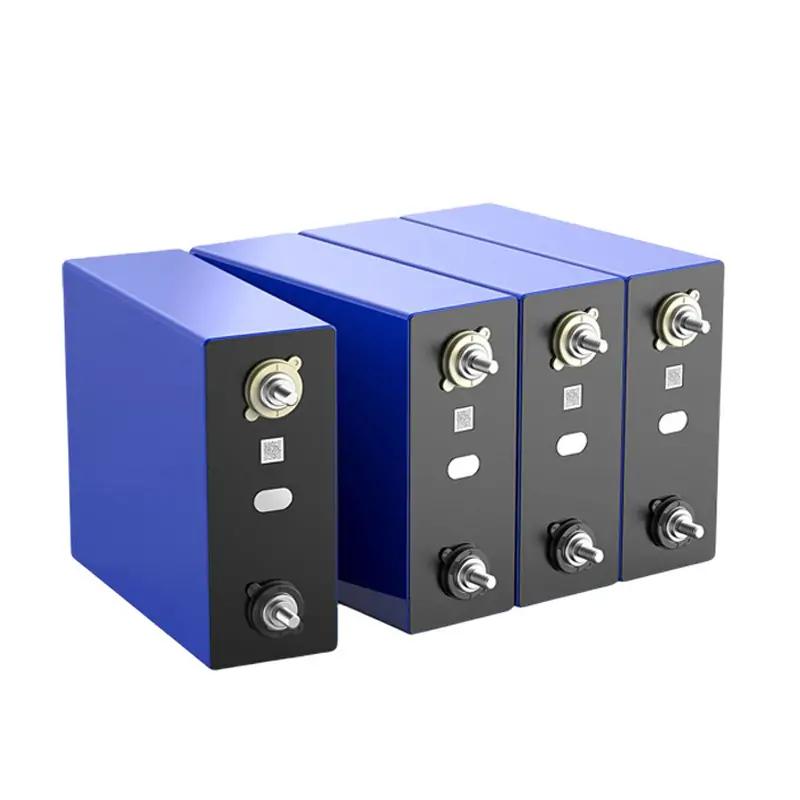

Envision AESC battery 3.2V 315Ah LiFePO4 Cell

ITEM

SPECIFICATION

Nominal Capacity

315.0Ah

Nominal voltage

3.2V

Charge voltage (End current)

3.65V

Discharge ending voltage

2.5V

Nominal energy

1008Wh@0.5C

Max continuous discharge current

315A

Max. peak discharge current

630A@30S

Max. continuous charge current

157.5A

Charge temperature range

0~6 0℃

Discharge temperature range

-30~60℃

Storage temperature

-30~60℃

Internal resistance

≤ 0.3 mΩ (AC Impedance, 1000 Hz)

Cycle life

≥5000cycles (standard charge/discharge)

Recommended SOC Window

SOC: 0%~100%

Cell size

71.65(T)*173.93(W)*207.23(H)±0.6mm

Weight

5.550±0.150kg
