3.2V 150Ah LiFePO4 Lithium Battery Cell PF173-150A For Energy Storage System


150ah lifepo4 cell3.2V 150ah lifepo4 cell

PF173-150A 3.2V 150ah brand new grade A prismatic lifepo4 battery cell for Commercial and Industrial ESS/Telecom ESS/Home ESS




Items

Parameters

Nominal voltage

3.2V

AC internal Resistance

0.5mΩ, RT , 1KHz

Rated discharging capacity

150Ah, RT 0.5C/1.0C

Standard charging current

75A0.5C

Maximum continuous charging current

150Ah1C

Cut-off charging voltage

3.65V

Maximum charging temp.range

0C~60

Optimal charging temperature range

10~35

Standard discharging current

75A0.5C

Maximum continuous discharging current

150A1C

Maximum pulse discharging current

450A3CSOC>40% 60s, SOC<40% 10s,

Cut-off discharging voltage

2.5VT>0), 2.0V-30<T0)

Allowable discharging temperature range

-30~60

Optimal discharging temperature range

10~35

Storage temperature

-20~60, Within 7 days

-20~40, Within 3 months

Over 3 months, 0~35

Storage humidity

<95%RH

Cycle life

3500 cycles (80%EOL), RT 1C/1C

Dimensions

T33.4*W200.4*H207.20.5mm

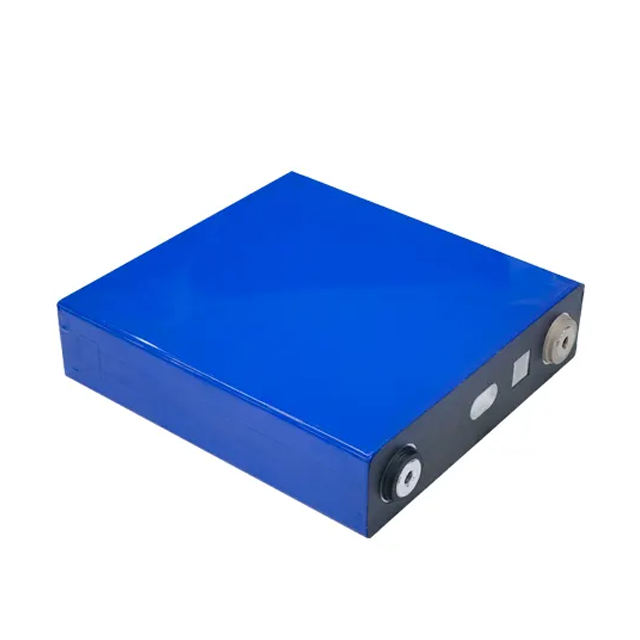

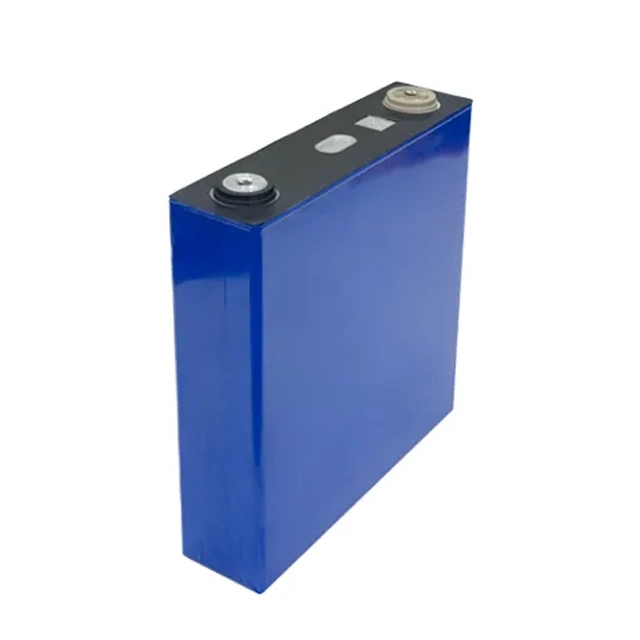

details of 150ah lifepo4 celldetails of 150ah lifepo4 cell

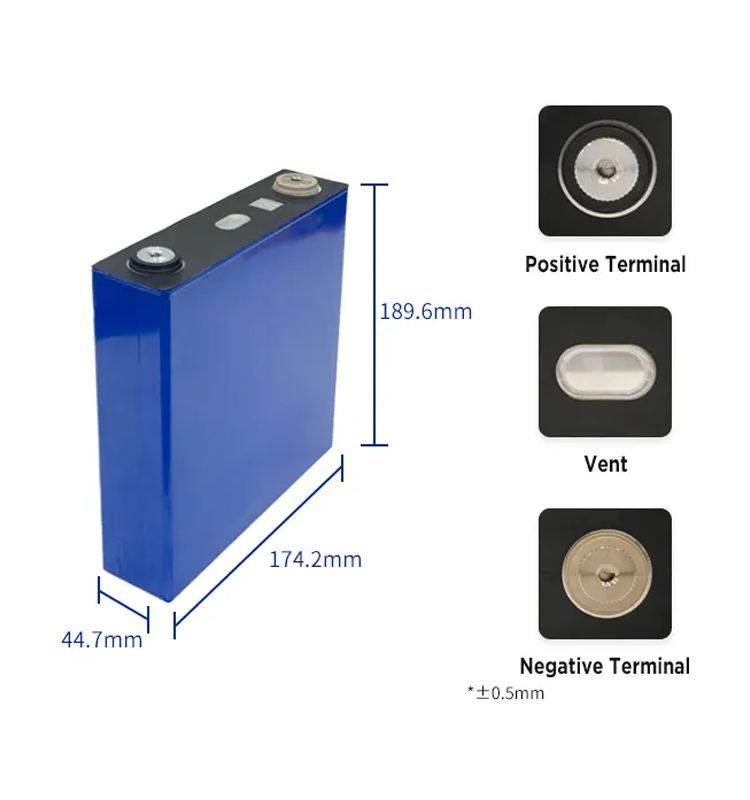

details of 150ah lifepo4 cell150ah lifepo4 battery dimensions
