NMC vs LFP vs LTO Batteries: Complete Comparison Guide

Battery technology is evolving rapidly, and three of the most discussed chemistries today are NMC (Nickel Manganese Cobalt), LFP (Lithium Iron Phosphate), and LTO (Lithium Titanate Oxide). These batteries are powering everything from electric vehicles (EVs) to renewable energy systems and industrial applications. Understanding their differences is crucial for businesses, engineers, and consumers looking to select the right battery for performance, cost, and safety.

This article provides a detailed comparison of NMC vs LFP vs LTO batteries, covering energy density, cycle life, charging speed, cost per kWh, safety, environmental impact, and practical use cases.

What are NMC Batteries?

NMC batteries (Nickel Manganese Cobalt) are among the most popular lithium-ion chemistries, particularly for electric vehicles. They are valued for their high energy density and strong power output.

• Energy Density: 150–250 Wh/kg (advanced cells can reach over 300 Wh/kg)

• Cycle Life: Around 1,000–1,500 cycles

• Cost per kWh: $100–$130 (varies with application)

• Thermal Stability: Balanced performance due to the combination of nickel, manganese, and cobalt

Key Advantages of NMC Batteries

• Excellent for long-range EVs

• Good balance of energy and power performance

• Strong adoption across automotive and consumer electronics industries

Common Applications

• Passenger electric cars

• Energy storage systems

• Portable electronics

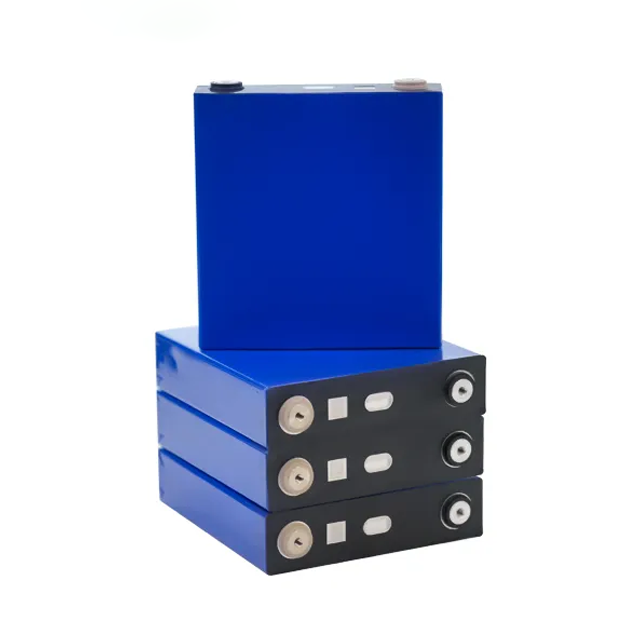

What are LFP Batteries?

LFP batteries (Lithium Iron Phosphate) stand out for their exceptional safety, affordability, and long lifespan. While their energy density is lower than NMC, they compensate with better thermal stability and lower production costs.

• Energy Density: 90–160 Wh/kg (high-performance versions up to 205 Wh/kg)

• Cycle Life: Up to 2,000 cycles or more

• Cost per kWh: $70–$100 (expected to drop to $36–$56 by 2025)

• Safety: Very low risk of thermal runaway

Key Advantages of LFP Batteries

• Extremely safe and stable under stress

• Longer cycle life than NMC

• Made with more abundant, eco-friendly materials

Common Applications

• Renewable energy storage (solar and wind)

• Electric buses and commercial vehicles

• Power tools and backup power supplies

What are LTO Batteries?

LTO batteries (Lithium Titanate Oxide) are engineered for ultra-fast charging and extraordinary longevity. Their lifespan can exceed 10,000 charge cycles, and they perform reliably even in extreme temperatures.

• Energy Density: 60–120 Wh/kg (lowest among the three)

• Cycle Life: 5,000–10,000+ cycles

• Cost per kWh: $150–$200 (higher due to specialized materials)

• Charging Speed: Full charge in under 30 minutes, sometimes as little as 10 minutes

Key Advantages of LTO Batteries

• Superior charging speed

• Extremely long service life

• Performs well in harsh climates

Common Applications

• Public transportation (e-buses, trains)

• Grid energy storage requiring fast charge/discharge

• Military and aerospace applications

NMC vs LFP vs LTO: Detailed Comparison

When choosing a battery, several performance indicators determine suitability:

1. Energy Density

• NMC: Highest, up to 300 Wh/kg → best for long-range EVs

• LFP: Moderate, up to 205 Wh/kg → safer but bulkier

• LTO: Lowest, 60–120 Wh/kg → not ideal for compact applications

2. Lifespan and Cycle Life

• NMC: 1,000–1,500 cycles → shorter lifespan

• LFP: 2,000+ cycles → excellent for daily use

• LTO: 5,000–10,000+ cycles → industry leader

3. Charging Speed

• NMC: Moderate (1–2 hours)

• LFP: Slower (3–4 hours)

• LTO: Ultra-fast (10–30 minutes)

4. Safety

• NMC: Moderate safety, risk of overheating if mishandled

• LFP: Very safe, resistant to thermal runaway

• LTO: Extremely safe, operates in extreme heat and cold

5. Cost per kWh

• NMC: $100–$130

• LFP: $70–$100 (falling rapidly)

• LTO: $150–$200

6. Environmental Impact

• NMC: Ethical concerns from cobalt mining, but recycling improving

• LFP: More eco-friendly, non-toxic, easier to recycle

• LTO: Expensive to produce, but longevity offsets environmental footprint

Battery Comparison Table

FAQs: NMC vs LFP vs LTO Batteries

1. What is the main difference between NMC and LFP batteries?
NMC batteries offer higher energy density and are ideal for long-range EVs, while LFP batteries focus on safety, affordability, and cycle life.

2. How much does an LTO battery cost per kWh?
LTO batteries cost between $150 and $200 per kWh, reflecting their superior charging speed and lifespan.

3. Which is better for energy storage: LTO or LFP?
For cost-effective, long-term cycling, LFP is a better option. If fast charging and durability are priorities, LTO is the winner despite the higher cost.

4. How do I choose between NMC, LFP, and LTO?
Your choice depends on application needs:

• NMC → Long-range EVs

• LFP → Safe, affordable storage and buses

• LTO → Fast-charging, heavy-duty systems

5. Can these batteries be recycled?
Yes. All three are recyclable, though LFP is easier to process, while NMC requires more complex recycling due to cobalt.

Conclusion

Choosing between NMC, LFP, and LTO batteries comes down to balancing energy density, lifespan, safety, and cost.

• NMC is perfect for long-range EVs needing compact, high-energy storage.

• LFP is the best all-rounder for safety, cycle life, and affordability.

• LTO excels in ultra-fast charging and unmatched lifespan, making it suitable for public transport and grid applications.

By understanding the strengths and weaknesses of each, industries and consumers can make smarter decisions that align with their performance goals and sustainability needs.
