The Ultimate Guide to Lithium Iron Phosphate (LiFePO4) Batteries

Introduction: What is a Lithium Iron Phosphate (LiFePO4) Battery?

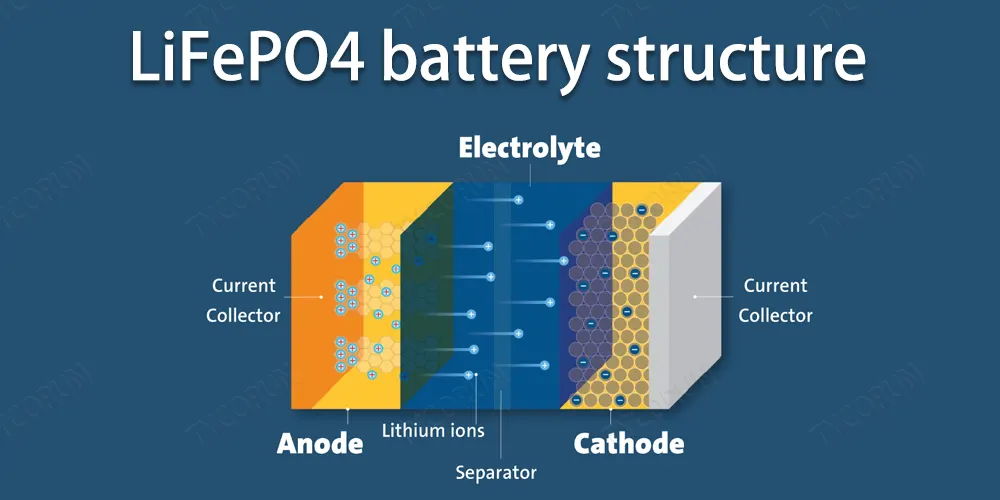

*LiFePO4 Battery Structure

Lithium Iron Phosphate (LiFePO4) batteries are a type of lithium-ion battery that uses lithium iron phosphate as the cathode material. These batteries are known for their exceptional thermal stability, long lifespan, and safety. Their structure includes an aluminum foil connected to the cathode and a copper foil attached to the anode, which is usually made of graphite. Between the electrodes lies a polymer separator that allows lithium ions to pass through but blocks electrons, assisting in precise charge and discharge control.

The entire assembly is enclosed in a tightly sealed metal casing. During the charging process, lithium ions move from the cathode through the separator to the anode. Conversely, during discharge, the ions migrate back to the cathode. This continuous ion movement is the core principle behind lithium-ion battery functionality.

Evolution of LiFePO4 Batteries: A Technological Milestone

1. Early Development: The Foundation Era (1990s)

Lithium-ion battery technology began to gain momentum in the 1990s, with Sony commercializing lithium cobalt oxide (LCO) batteries in 1991. However, LCO batteries had key shortcomings—high manufacturing costs, thermal instability, and reliance on scarce cobalt resources. These limitations restricted their large-scale use, particularly in applications demanding high safety and economic viability.

2. Discovery and Validation of LiFePO4 (1996)

In 1996, Professor John B. Goodenough, hailed as the “Father of the Lithium-ion Battery,” and his research team introduced Lithium Iron Phosphate as a potential cathode material in a groundbreaking academic paper. LiFePO4 offered key advantages over traditional lithium cobalt oxide:

• Thermal and chemical stability – Highly resistant to heating and combustion.
• Safety-first chemistry – Lower risk of explosion or fire due to its olivine crystal structure.
• Long theoretical cycle life – Capable of thousands of charge/discharge cycles.

However, this material wasn’t without faults. It suffered from:

• Poor electrical conductivity.
• Lower energy density (around 3.2V average voltage).
• Low tap density, affecting space efficiency in battery cells.

A funny anecdote: When Goodenough was asked in 2017 about missing out on a Nobel Prize, the then 95-year-old replied, “It’s okay, I’m Goodenough.” He emphasized the importance of lifelong learning and persistence, saying, “Be the turtle that climbs slowly but steadily. Every step counts.”

3. Innovation Breakthrough: Carbon Coating

To address the core challenge of poor conductivity, Professor Michel Armand of Drexel University proposed an innovative solution—carbon coating. This method involved applying a thin conductive carbon layer around nano-sized LiFePO4 particles. Think of it like building a fast highway around each electrically isolated “house,” dramatically enhancing electron transport. This technique was crucial in unlocking LiFePO4’s practical potential.

4. Slow Growth Amidst the Energy Race (2000s)

Through the early 2000s, consumer electronics like smartphones and laptops pushed demand for high energy density batteries—something LiFePO4 lacked. Lithium cobalt oxide and later NCM (Nickel Cobalt Manganese) batteries took the spotlight. Even Tesla opted for NCM cells early on, favoring higher range over long life or safety.

However, LiFePO4 quietly served niche sectors that prioritized safety and longevity, such as:

• Electric buses
• Backup power stations
• Special-purpose electric vehicles

5. Market Explosion and Mainstream Adoption (Post-2010)

The real turnaround came after 2010. China identified electric vehicles (EVs) and green energy as national strategic priorities, emphasizing battery safety, cost reduction, and supply chain independence. LiFePO4, with its cobalt-free composition, durability, and cost-effectiveness, emerged as the perfect solution.

Companies like BYD and CATL led global LiFePO4 innovation. Their breakthroughs in battery design and manufacturing ignited global demand, not only in China but also across the U.S. and Europe. The energy transition boom gave LiFePO4 a second life—with mass adoption in portable energy storage systems and mainstream electric vehicles.

Capacity Evolution: LiFePO4 Battery Development by the Numbers

*628ah LiFePO4 Battery cell

Over the years, LiFePO4 batteries have seen significant leaps in capacity and application. Here’s a timeline breakdown by capacity (in amp-hours), technology, and use cases:

How Temperature Affects LiFePO4 Battery Performance

Temperature plays a pivotal role in the efficiency and lifespan of LiFePO4 batteries. Here's how different temperatures impact performance:

Optimal Temperature Range: 15°C - 35°C

• Best performance and longest cycle life.
• High efficiency with stable electrolyte behavior.

Functional Operating Range: -20°C - 45°C

• Battery still functions but with reduced charge/discharge efficiency.
• Performance degrades as the temperature approaches limits.

Extreme Temperature Tolerance: -40°C – 60°C

• At low temperatures:

  • Electrolyte can solidify.
  • Internal resistance increases.
  • Capacity and efficiency decrease sharply.

• At high temperatures:

  • Electrode degradation accelerates.
  • Irreversible damage to cell chemistry can occur.
  • Lifespan drastically shortens—operating at 15°C above recommended can halve the cycle life.

Controlling environmental conditions is crucial for maximizing performance and longevity, especially in demanding applications like electric vehicles or remote energy storage systems.

Key Benefits of LiFePO4 Batteries

• Exceptional Safety: Highly resistant to thermal runaway, fire, or explosion.
• Long Lifespan: Typical cycle life of 2,000–5,000 cycles with proper management.
• Eco-friendly Composition: No heavy metals like cobalt or nickel.
• High Discharge Rates: Suitable for high-power applications.
• Stable Voltage Output: Consistent power throughout discharge.

Final Thoughts: The Bright Future of LiFePO4 Technology

From a promising lab discovery to an industrial powerhouse, Lithium Iron Phosphate batteries have proven that safety, longevity, and affordability can coexist. With the global shift toward clean energy, EV adoption, and grid storage, LiFePO4 is not just a viable solution—it’s a frontrunner.

Backed by rapid innovation in China and global demand for sustainable energy storage, LiFePO4 batteries are set to dominate the next decade of energy storage technology.
