4S-96S BMS with Bluetooth RS232 and Active Balance to South Africa

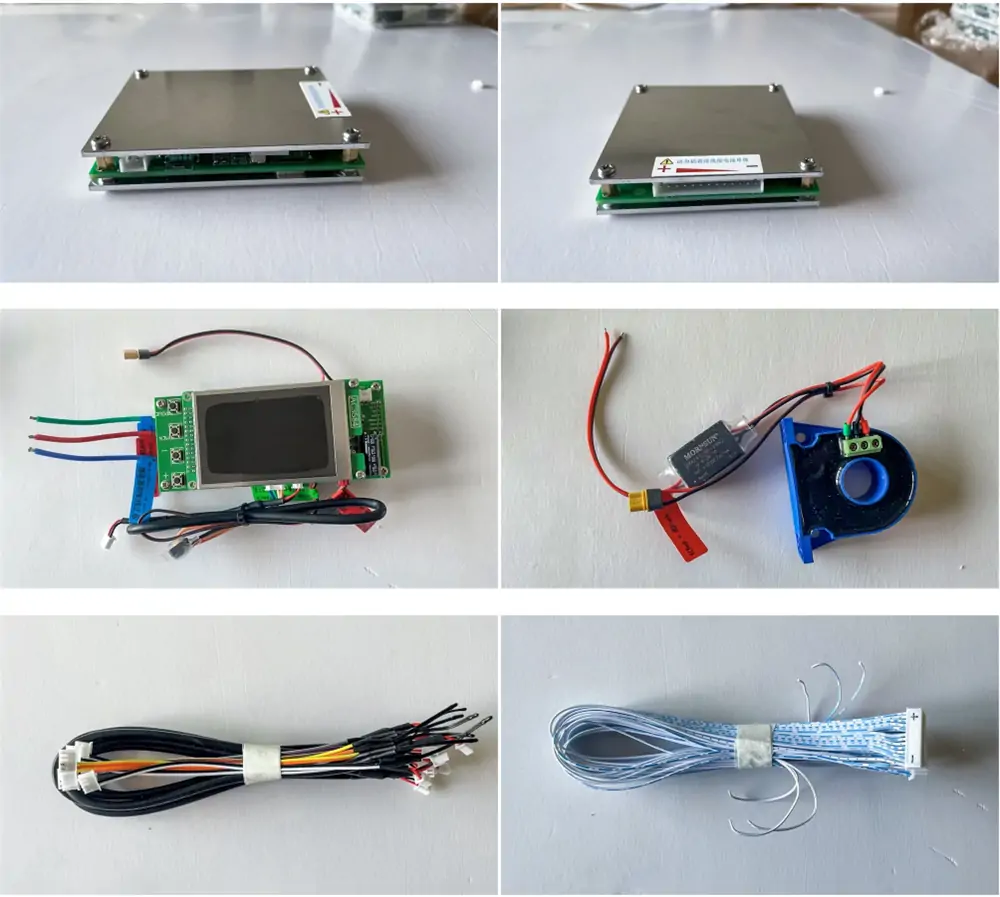

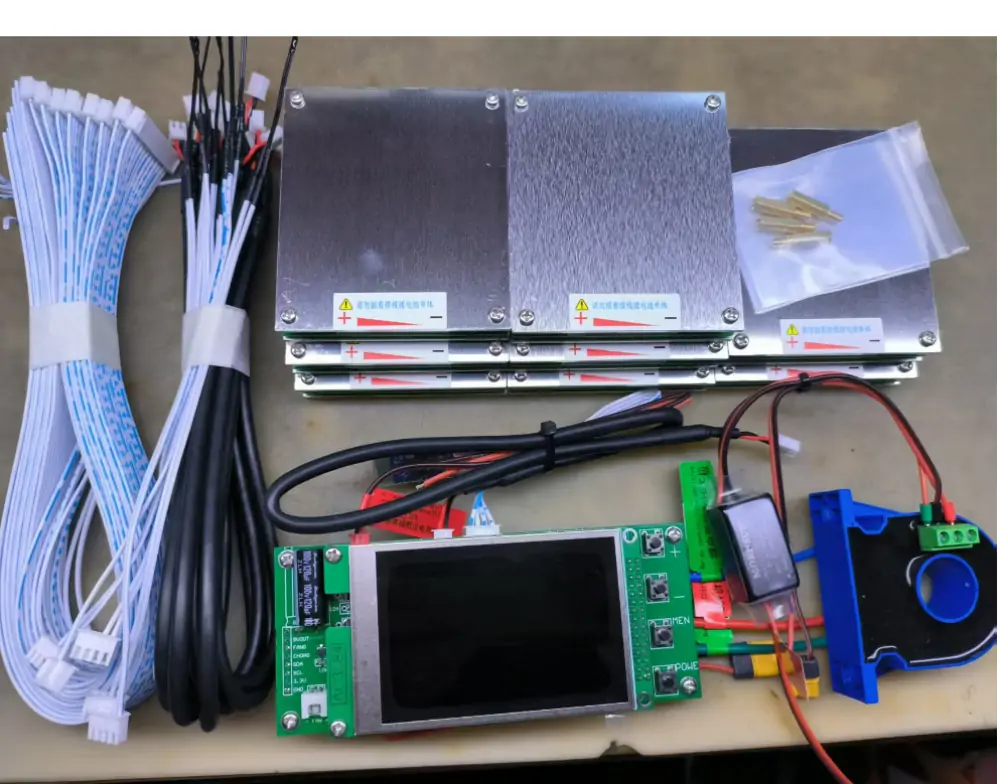

Recently our customer fromSouth Africa placed a repeat order for high voltage 4S-96S BMS for bank system .
Our customer request the BMS with common port.

One master BMS can control 8pcs slave BMS，but now has updated to 16pcs，each slave BMS can manage 12S lithium batteries， which is max 192S.
The system has functions such as single overcharge protection, single over discharge protection, overcurrent protection, high temperature protection, low temperature protection, differential pressure protection, and battery failure protection；
The host is equipped with various running lights to indicate the system running status without using the screen；
The BMS has 3.5 inch IPS color screen display, ultra wide viewing angle, and clear working status at a glance；
There are two types of relay schemes: same port and split port, with different control software. The interface type needs to be determined before procurement；
Supports RS232 TTL communication and CAN communication, with an Android mobile app that monitors and controls the status and parameter settings of the host through Bluetooth.

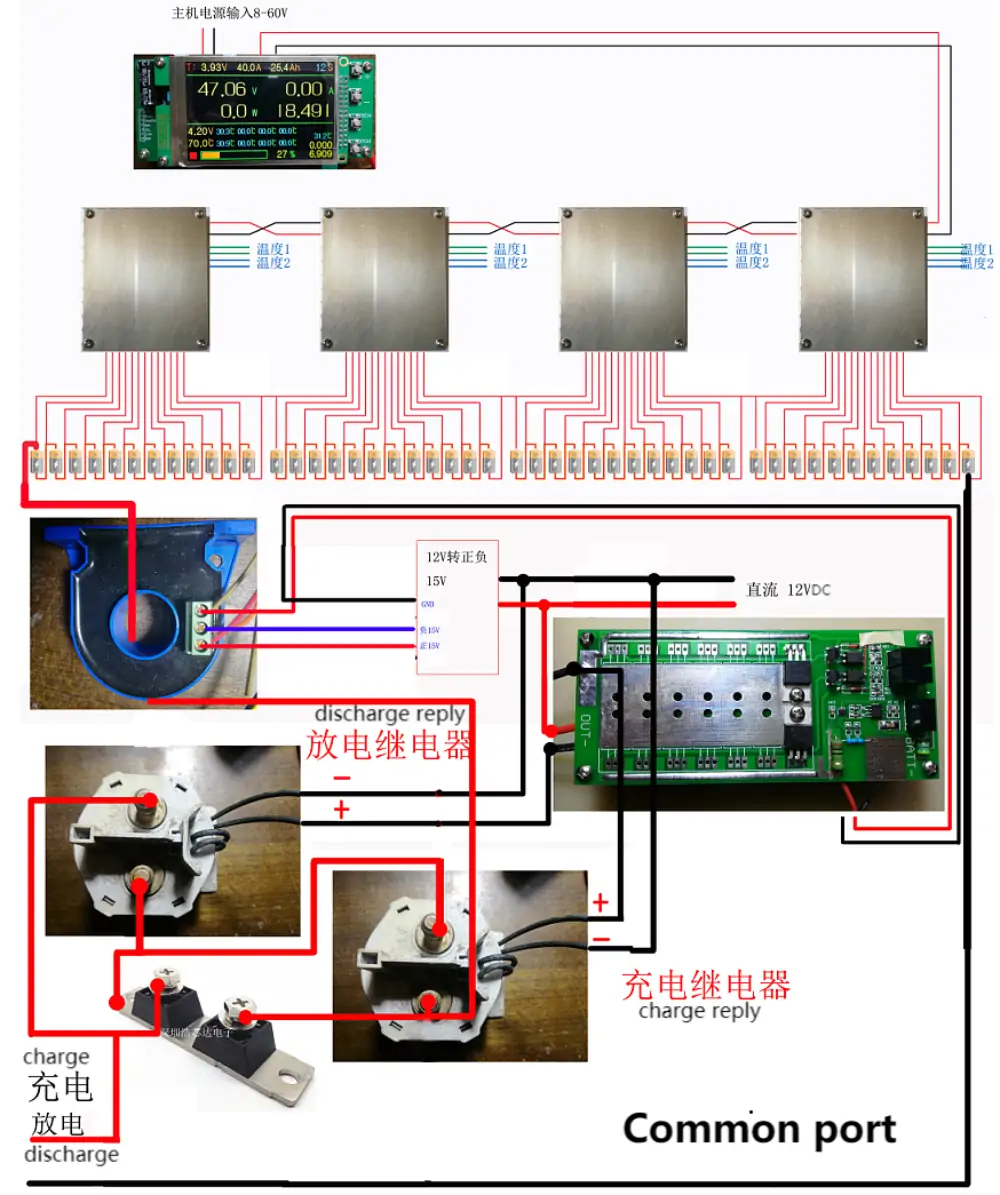

Please check the below picture for wiring connection of 96S common port:

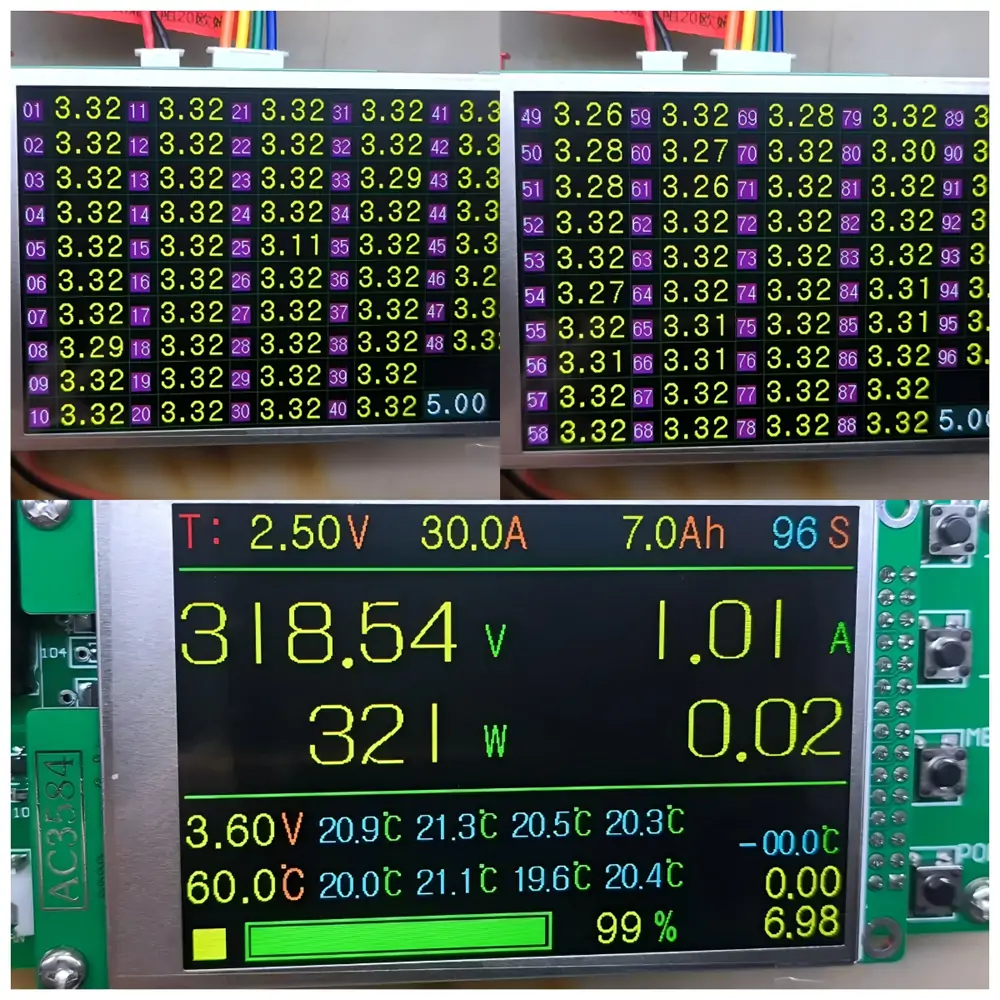

Before shipping,we tested the BMS and it works well.

The BMS was packaged in cartons with foam padding to prevent damage during transportation,total gross weight is 1.6KG.

More function and information,please feel free contact us.
The BMS has been sent out by air via FedEx and our customer will received them soon.

Edit by Alisa
