4S-192S BMS with Bluetooth RS232 and Active Balance to Europe

Recently our customer ordered 2sets of 4S-192S BMS from us and asked us to ship them to Europe.

4S-192S BMS consists of one master BMS and 16pcs slave BMS.One master BMS can control 16pcs slave BMS.

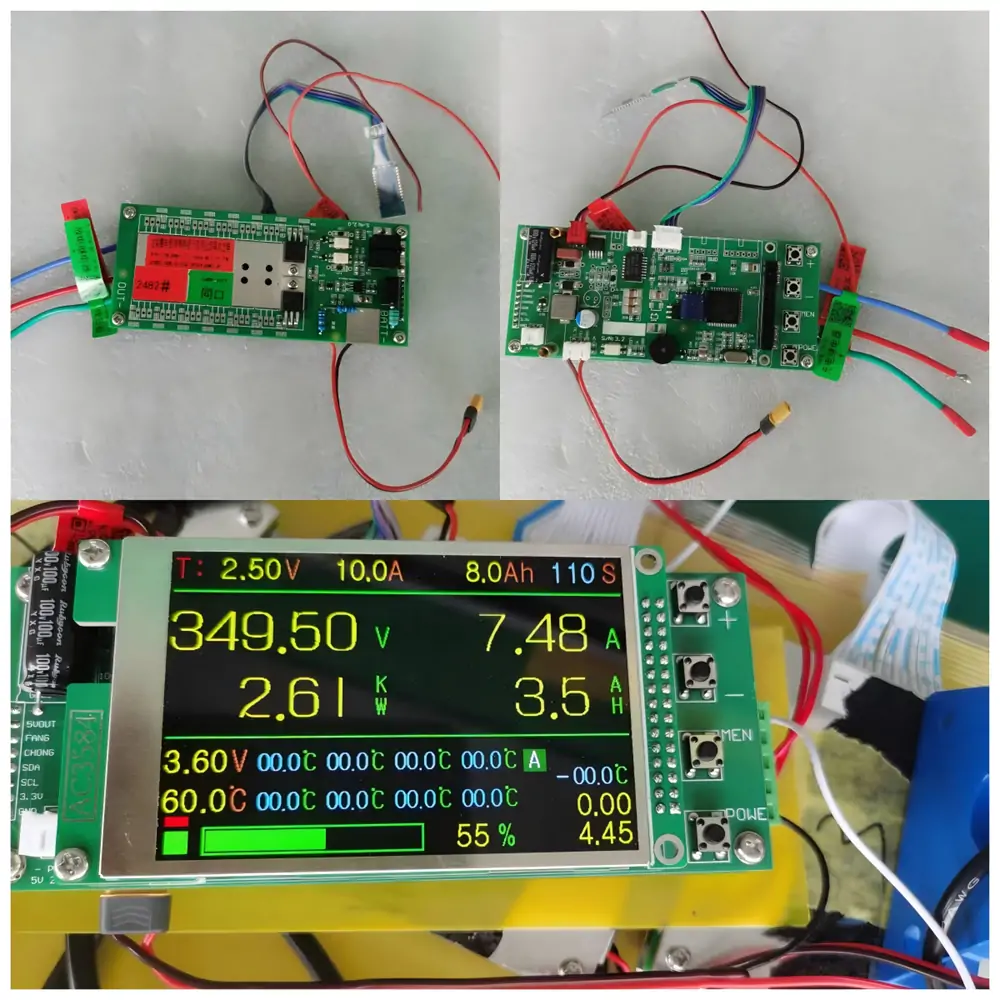

Master BMS:

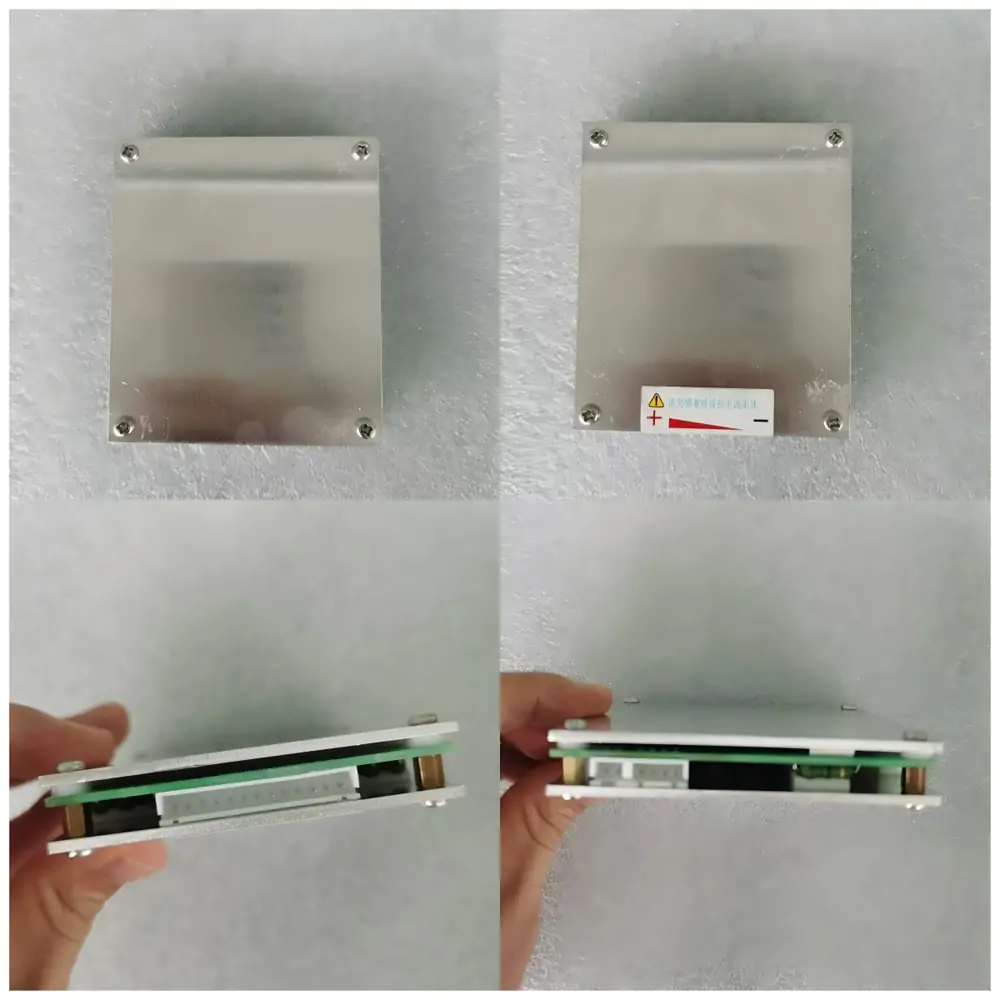

Slave BMS:

The system has functions such as single overcharge protection, single over discharge protection, overcurrent protection, high temperature protection, low temperature protection, differential pressure protection, and battery failure protection；
The host BMS is equipped with various running lights to indicate the system running status without using the screen；
The BMS has 3.5 inch IPS color screen display, ultra wide viewing angle, and clear working status at a glance；
There are two types of relay schemes: same port and split port, with different control software. The interface type needs to be determined before procurement；
Supports RS232 TTL communication and CAN communication, with an Android mobile app that monitors and controls the status and parameter settings of the host through Bluetooth.

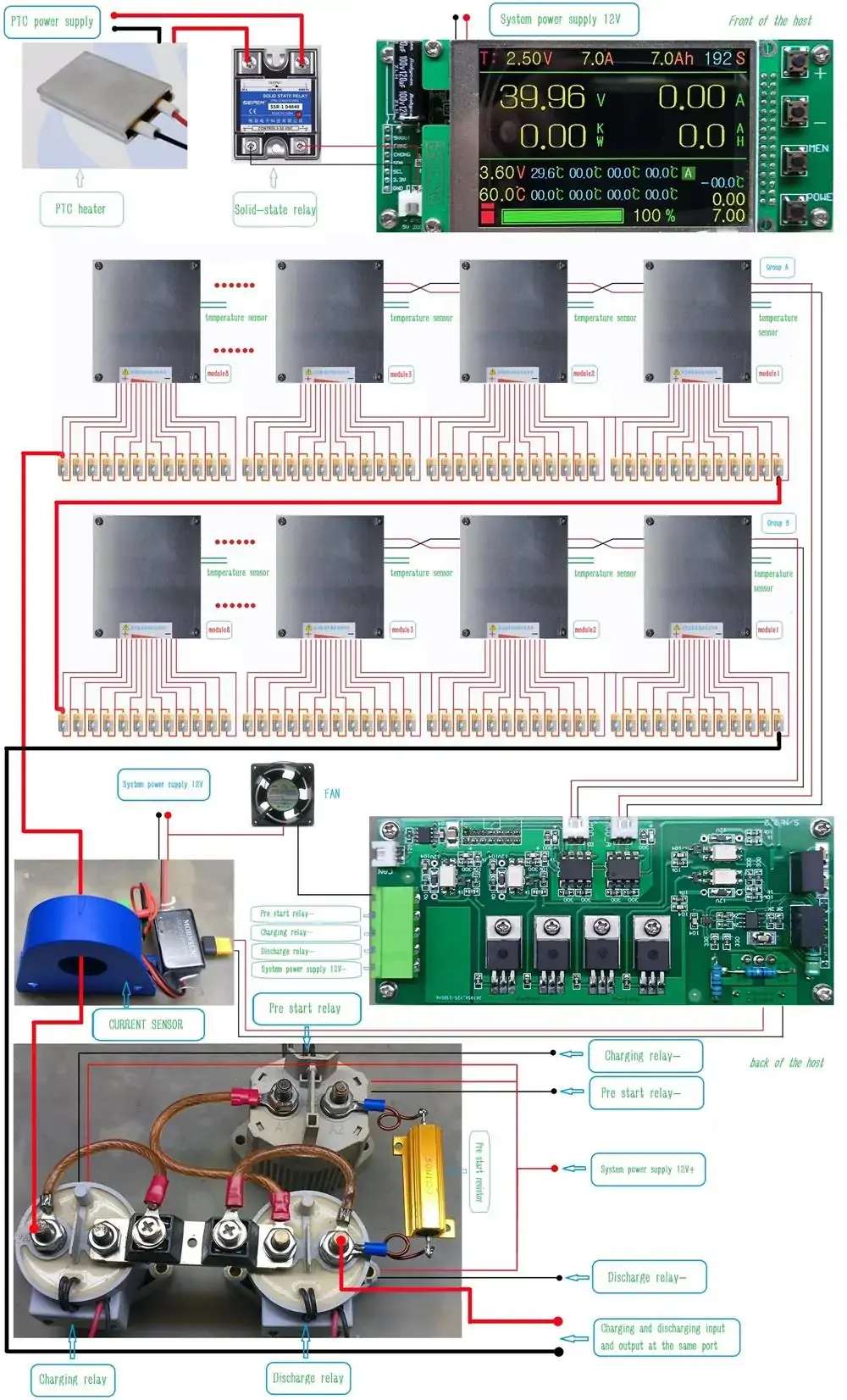

Please check the below picture for wiring connection of 192S common port:

More function and information,please feel free contact us.
We packed BMS into carton and protected by sponge.

The BMS has been sent out by air with special and our customer will receive them within this week.

Edit by Alisa
