Home > Hot Product>7.2v 6.5AH nickel metal hydride ni mh battery pack for toyota prius hybrid car battery replacement

7.2v 6.5AH nickel metal hydride ni mh battery pack for toyota prius hybrid car battery replacement

Hot Product

Nickel metal hydride Ni-MH battery pack for Toyota Prius hybrid car battery replacement

Individual pricing for large scale projects and wholesale demands is available.

Mobile/WhatsApp/Wechat: +86 156 0637 1958
Email: info@evlithium.com

Description

7.2V 6.5AH nickel metal hydride Ni-MH battery pack for Toyota Prius hybrid car battery replacement. This replacement battery pack has similar performance to the original battery

Details of the Toyota Prius hybrid car battery replacement Ni-MH battery pack

internal structure

appearance

power nickel metal hybrid batteries

Both are power nickel metal hybrid batteries; the normal voltage of the cells is 1.2V

Specification

Item	PEVE (TOYOTA)	Cylindrical
Rated Voltage (V)	7.2	7.2
Rated Capacity (Ah)	6.5	6.0
Weight Energy Density (Wh/kg)	45	43
Volume Energy Density (Wh/L)	79	125
Power Characteristic (SOC 60% 25°C 10sec)	1063	1064
Weight Power Density (W/kg) (SOC 60% 25°C 10sec)	1022	1023
Durableness¹ (Km)	>300,000	>300,000
Mass (g)	1040	1050
External Dimensions	19.6(W) × 106(H) × 285(L)	φ33 × 397(L)
Volume (L)	0.59	0.34
Electrobath	Resin	Metal

*Based on the charge/discharge cycle that imitates running when the battery's temperature is 35 ℃

The replacement battery has a similar performance to the original battery

power characteristic

There is no big difference in power against temperature, so replacement is available.

Replacement theory

The voltage of the two original battery modules is 14.4V, so they can be replaced by one cylindrical battery module

Replacement scheme of the Ni-MH battery pack

Remove the old battery pack

Remove old battery pack

Installation of the new battery pack

Performance verification

Performance

The vehicle drove for 7500 km after the battery pack change; no failures occurred, and fuel consumption improved.

Performance verification-2

The vehicle was driven in the city after the battery pack was installed. The battery pack’s working voltage is 196V～250V, charge/discharge peak current is about 80A, and average effective current is about 12A, which is reasonable.

The vehicle was driven for 7 hours continuously in the city after the battery pack settled. The temperature difference of the battery is within 6℃, which is reasonable.

All models we can provide

Replacement battery pack for the TOYOTA series

Model & Voltage	Battery pack	Vehicle types

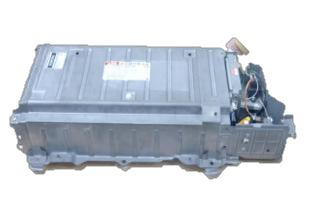

201.6V/6Ah		Prius 2nd（2004-2009）
201.6V/6Ah		Prius 3rd（2010-2015） Corolla Hybrid Levin Hybrid

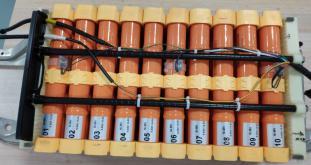

144V/6Ah		Prius c
201.6V/6Ah		Camry xv40(2007-2011)
201.6V/6Ah		Camry xv50（2012-2016)

Replacement battery pack for LEXUS Series

Model & Voltage	Battery pack	Vehicle types

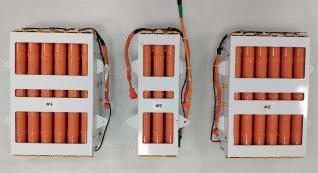

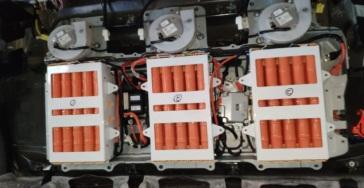

288V/6ah		Lexus rx400h
288V/6Ah		Lexus rx450h
230.4V/6Ah		Lexus IS300h
201.6V 6ah		Lexus NX300h
201.6V 6ah		Lexus es300h/GX450/
201.6V/6Ah		Lexus CT200h (2011-2014)

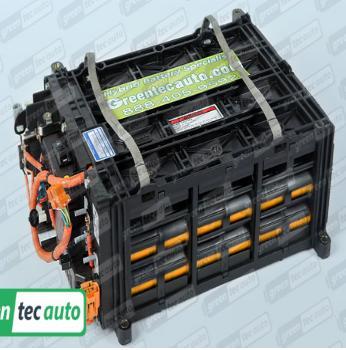

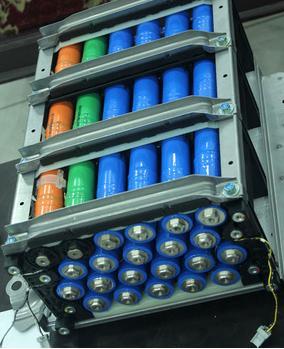

Replacement battery pack for Honda Series

Battery pack	Vehicle types	Module usage
	Prius 1st（97-00）	40pcs/pack
	Insight 1st（00-06） Civic 1st (03-05) Accord 1st (05-07)	20pcs/pack
	Prius 1st (01-03)	38pcs/pack
	Accord 1st (10-12) Fit 1st	10pcs/pack
	Insight (10-12) CR-Z (11-12）	7pcs/pack
	Civic 3rd (06-11)	11pcs/pack
