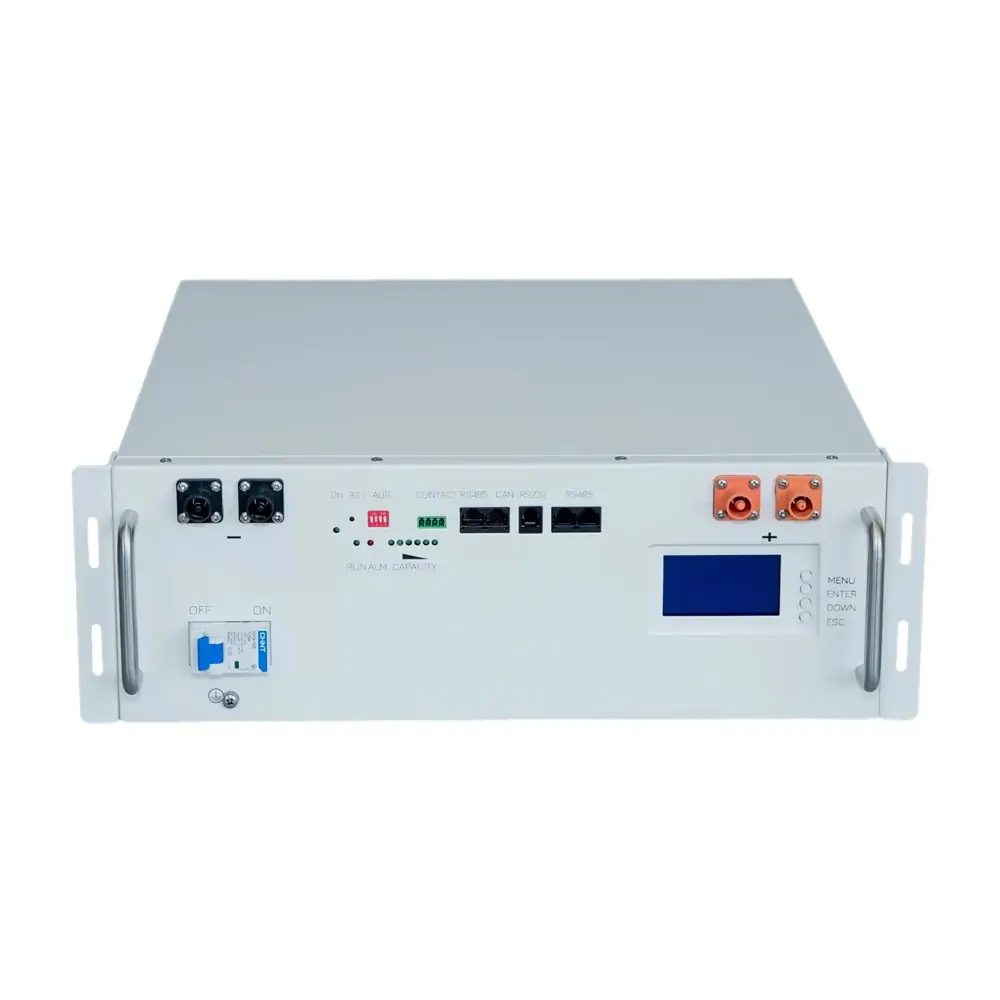

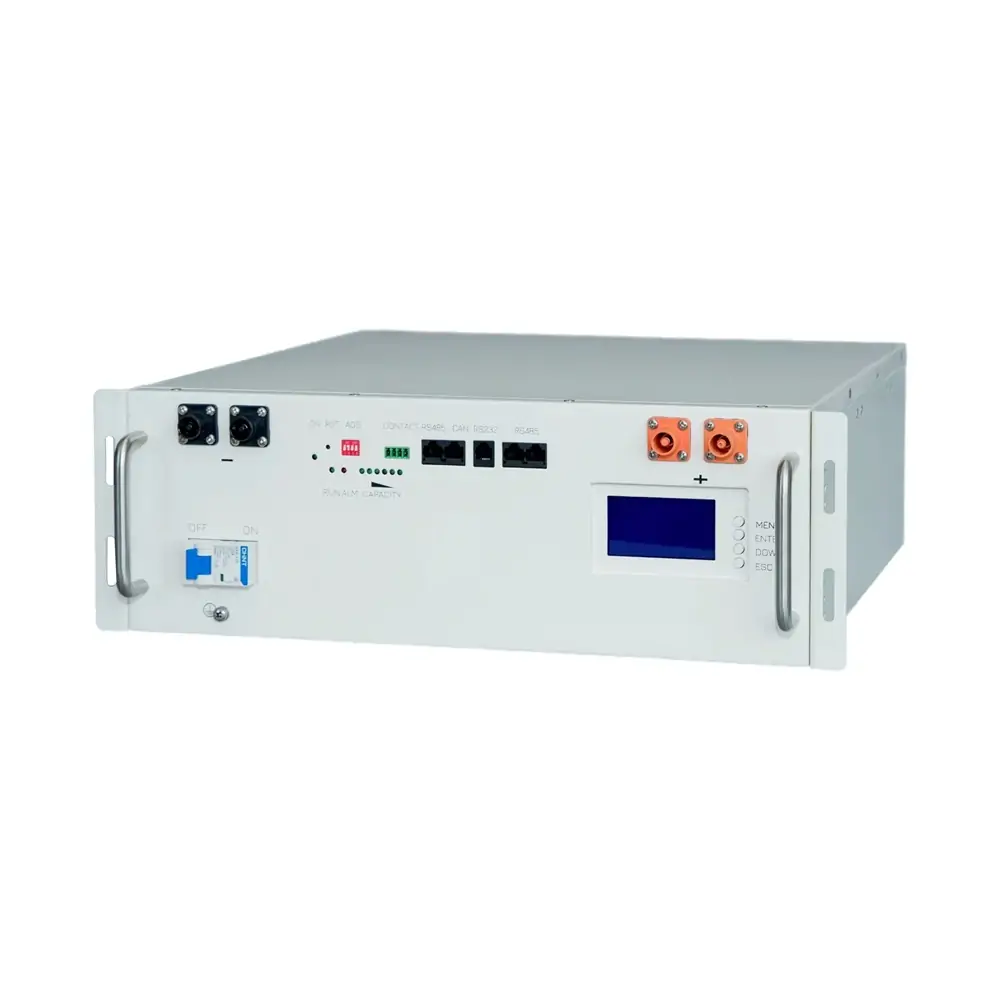

48V 100ah 5kwh Lithium LiFePO4 Battery Pack
The EVL 48V Lithium Iron Phosphate Battery Pack is the perfect option for off-grid energy storage systems. We designed brand new 48V 100AH LiFePO4 Battery pack with our high quality 10Ah LiFePO4 single battery cells. They are a energy storage system for house with the capacity of 5kwh. The 48V Lithium Battery bank with LiFePO4 technology, meets the highest safety standards and has a special life cycle, optimized with a proprietary manufacturing process and battery architecture. The state-of-the-art Battery Management System (BMS) provides comprehensive protection features and real-time monitoring.
Features of 48V Lithium LiFePO4 Battery Pack:
● Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.
● Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ”drop in” replacement for lead acid battery.
● Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity.
● Wider Temperature Range: -20℃~60℃
● Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, over charging or short circuit situation.
● No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.
Specification:
|
Model |
NE-48D100-NP |
|
Electrical
Characteristics |
Nominal Voltage |
48V |
|
Nominal Capacity |
100Ah |
|
Energy |
4800Wh |
|
Internal Resistance |
≤100mΩ (without BMS) |
|
Cycle Life |
≥2000 cycles（25℃ 80%DOD） |
|
Design Life |
≥10 years @25℃ |
|
Self-Discharge (90 days) |
≤5%，@25℃ |
|
Efficiency of Charge |
≥98% |
|
Efficiency of Discharge |
≥100% @ 0.2C
≥96% @ 0.5C |
|
Charge |
Charge Voltage |
54.0V±0.1V |
|
Charge Mode |
0.2C to 54.0V, then 54.0V charge current to 0.02C (CC/CV) |
|
Max. Charge Current |
100A |
|
Charge Cut-off Voltage |
56.25V±0.2V |
|
Discharge |
Max. Continuous Discharge Current |
100A |
|
Discharge Cut-off Voltage |
42V±0.2V |
|
Environmental |
Charge Temperature Range |
0℃~60℃ |
|
Discharge Temperature Range |
-20℃~60℃ |
|
Optimum Operation Temperature |
5℃~45℃ |
|
Storage Temperature |
0℃~45℃, ≤85% relative Humidity |
|
Water Dust Resistance |
IP20 |
|
Mechanical |
Case |
Iron (Insulation painting) |
|
Dimensions (including the handles) |
442*410*178mm |
|
Weight |
~46kg |
|
Gravimetric Specific energy |
~105Wh/kg |
|
Others |
Method |
15S Cylindrical cells |
|
Protocol |
RS485 (2 Nos) / RS232 |
|
SOC Light |
4 * LED |
|
LCD Screen |
Optional, the default setting is no screen |
<SPAN style=>Functions of BMS:
● Over charge detection function
● Over discharge detection function
● Over current detection function
● Temperature protection function
● Short circuit detection function
● Balance function
Applications:
Electrical vehicles, Solar/wind energy storage system, UPS, backup power, Telecommunication, Medical equipment, Lighting, etc.
