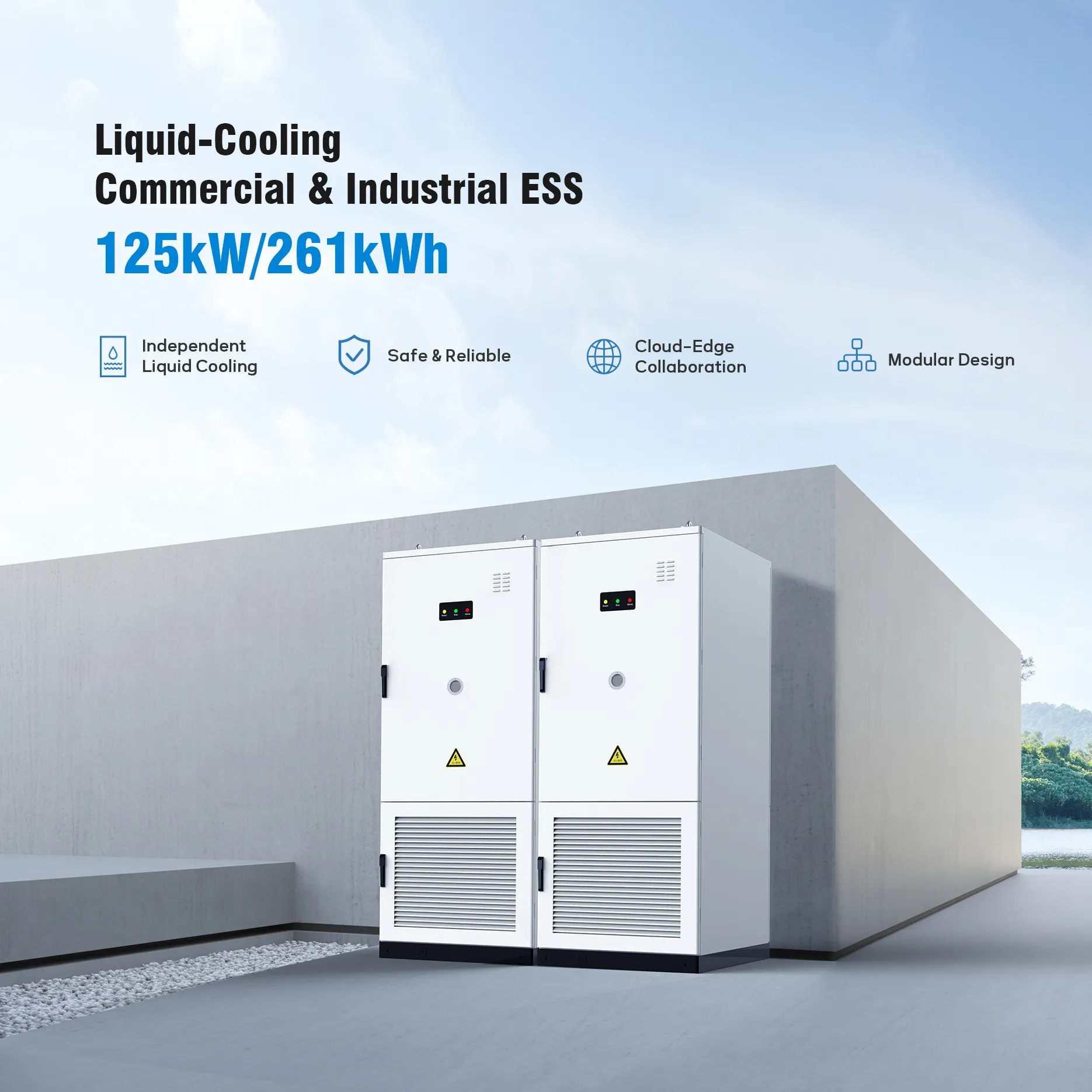

125Kw 261Kwh Liquid cooling all in one Battery energy storage Cabinet

Energy storage system

125Kw 261Kwh Liquid cooling all in one Battery energy storage Cabinet liquid-cooling for commercial & industrial ESS

Individual pricing for large scale projects and wholesale demands is available.

Mobile/WhatsApp/Wechat: +86 156 0637 1958
Email: info@evlithium.com

Description

Features

features of 125kw 261kwh all in one bess cabinet

Equipped with an independent liquid cooling system, it achieves higher energy density and enhanced heat dissipation within a compact footprint, while offering advantages such as high efficiency, low noise, safety, reliability, and easy scalability. When integrated with PCS (Power Conversion System), it enables grid voltage regulation, three-phase imbalance mitigation, and harmonic suppression, thereby improving power quality. With a mere footprint of 1.3 square meters, the product features a modular design and high IP protection rating, allowing it to adapt to diverse application scenarios. It can also serve as a backup power source, helping enterprises lower your energy costs and increase green energy usage.

Specifications

Model	Energy Cuve 100
DC Parameter
Battery Type	LFP
Combination Mode	1P260S
Rated Capacity	314Ah
Rated Energy	261kWh
Rated Voltage	832V
Rated Power	125kW
Operating Voltage Range	650V～949V
Charge/Discharge Current	100A/100A
Cooling Mode	Liquid Cooling
Cycle Number	8000
Fire Protection System	Perfluorohexanone + Aeroso+Water fire suppression
Detector Type	Temperature / Smoke Sensor / Water Leak
AC Parameter
Rated Output Power	125kW
AC Overload Capability	137.5kW
Wiring Method	Three-phase, four-wire
Allowed Grid Voltage	380V/400V（-15%～＋15%）
Allowed Grid Frequency	50Hz/60Hz±2.5Hz
Total Harmonic Distortion (THD)	≤ 3% (at full load)
Power Factor	-0.99/-1~1
DC Component in Current	≤0.5%
Charge/Discharge Conversion Time	＜100ms
Maximum Conversion Efficiency	≥98％
System Parameter
Operating Environment	-20℃～50℃（Power derating 45℃+）
Size (WDH mm)	100013002500
Weight	About 2.6T
Class Of Protection	IP54
Allowable Relative Humidity	0-95%
Allowable Altitude	≤2000m（Power derating 2000m + ）
Certification Standard	IEC62619、EN62477-1、IEC 63056

Details

Liquid-Cooled Dynamic Thermal Management

Liquid-cooled thermal design
≤75dB low-noise operation
Safe and reliable
Partitioned isolation with active safety monitoring | PACK-level immersion fire protection
Cloud-edge coordination
24/7 real-time monitoring | Multiple operational modes
Modular design
Easy installation and commissioning | Flexible capacity expansion on demand

Liquid-Cooled Dynamic Thermal Management

Product Exterior

Application Scenario

Savings on Electricity Costs through Peak-Off-Peak Price Differentials

During periods of low electricity prices, use the grid to charge the devices. During periods of high electricity prices, discharge the batteries to power the load.

Used as a Backup Power Source during Power Outages

It can serve as a backup power source during power outages, providing power to critical facilities to ensure uninterrupted business operations.

Providing Power Compensation

Providing Power Compensation Function to Ensure Stable Power Supply for Businesses and Ensure Safe Equipment Operation.

PV and Energy Storage Integration Building an Independent Grid

Storing excess electricity generated by the photovoltaic system using the Energy Cube and converting it for later use.
