Features
Full Grid Service Compatibility
Supports grid demand response, peak shaving, and auxiliary frequency regulation to unlock additional revenue streams for asset owners.
Multi-Level Hierarchical Fuse Protection
Adopts a layered electrical fuse architecture to completely mitigate short-circuit risks and prevent electrical fires.
High-Efficiency Full Liquid Cooling System
Circulating liquid thermal management maintains stable and safe temperature control under continuous high-power charging and discharging operations.
NFPP Sodium Ion Core Technology
No lithium, cobalt or nickel materials. Zero thermal runaway risk. ≥15,000 cycles at 70% DOD under 25°C ambient, making it an ideal solution for large-scale industrial park energy storage projects.
Specifications
| Model |
NA-CBESS-200A |
| Nominal Capacity |
160Ah |
| Nominal Energy |
199.68kWh |
| Operating Voltage Range |
832V~1435.2V |
| Charge/Discharge Rate |
0.8P |
| Cycle Life |
≥10000 (@25℃±2℃, 0.5P/0.5P, 70% EOL) |
| Fire Protection System |
Aerosol |
| Max. Charge/Discharge Power |
110kW |
| Max. Charge/Discharge Current |
230A |
| Allowed Grid Voltage Range |
400V (-10%~-15%) Vac |
| Voltage Harmonic Distortion |
≤3% |
| Power Factor |
-1~1 |
| Ingress Protection |
IP54 |
| Max. System Efficiency |
96% |
| Discharge Operating Temperature |
0℃~55℃ |
| Relative Humidity |
15%~90%RH (Non-condensing) |
| Communication |
LAN / CAN / RS485 |
| Dimensions (L×W×H) |
2100 × 1456 × 2380mm |
| Max. Parallel |
5 |
| Battery Type |
NaCP71173208-160E3 |
| Battery Configuration |
1P416S |
| Nominal Voltage |
1248V |
| Max. Continuous Charge/Discharge Current |
128A |
| Max. Charge-discharge Efficiency |
≥92% |
| Standard Charge/Discharge Current |
160A |
| Rated Charge/Discharge Power |
100kW |
| Max. Overload Capacity |
176kVA (1.1 times long-term / 1.5 times for 10s overload) |
| Rated Grid Voltage |
400V |
| Allowed Grid Frequency |
50/60Hz (0.5~2.5Hz) |
| Grid Type |
3P4W/3P3W |
| Cooling Method |
Intelligent Air Cooling |
| Anti-Corrosion Grade |
C4 |
| Charge Operating Temperature |
-25℃~55℃ |
| Storage Temperature |
0℃~45℃ |
| Max. Working Altitude |
≤3000m (>3000m derating) |
| Cooling |
Liquid Cooling |
| Net Weight |
3500kg |
| System Certification |
UL1973, UN38.3, MSDS |

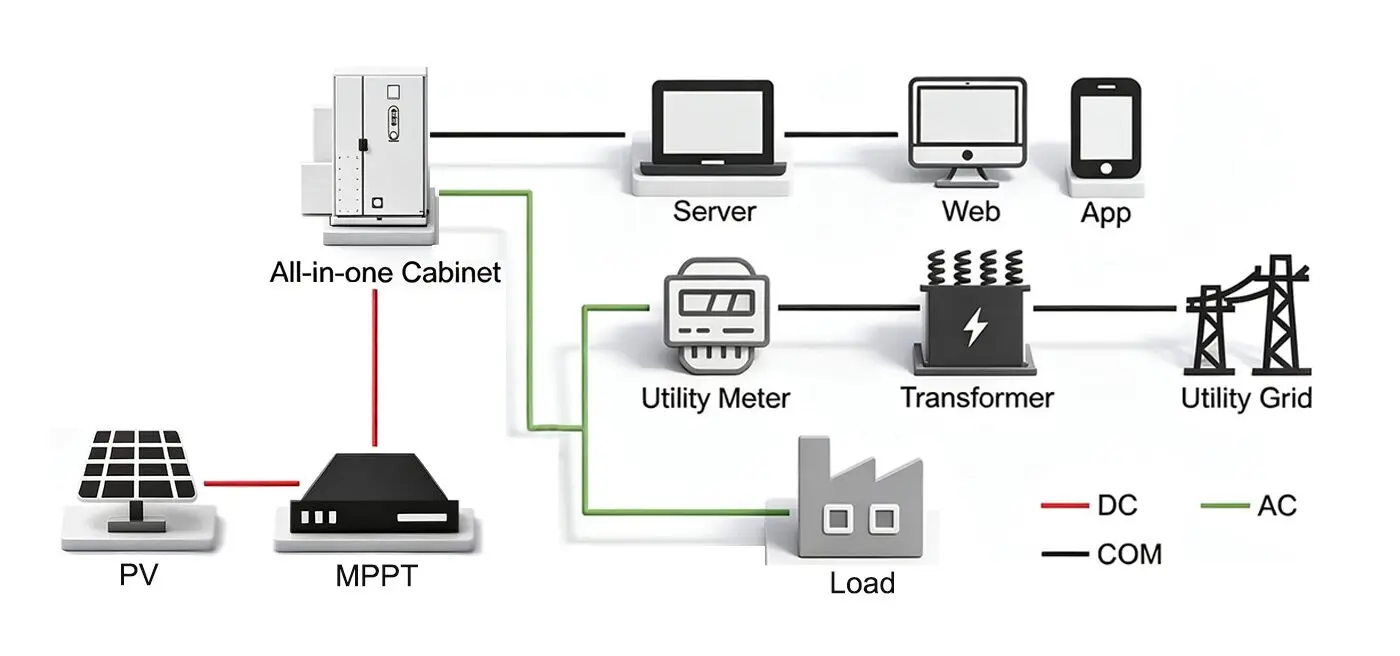

Applications
- PV energy storage for large industrial & commercial sites
- Grid peak shaving and demand response
- High-power emergency backup for industrial parks
- Wind-solar-storage integrated microgrid projects
