Customized 5 designs of 12V lithium battery pack for surveillance camera

Recently, we designed 5 different designs of 12V battery packs for surveillance camera.

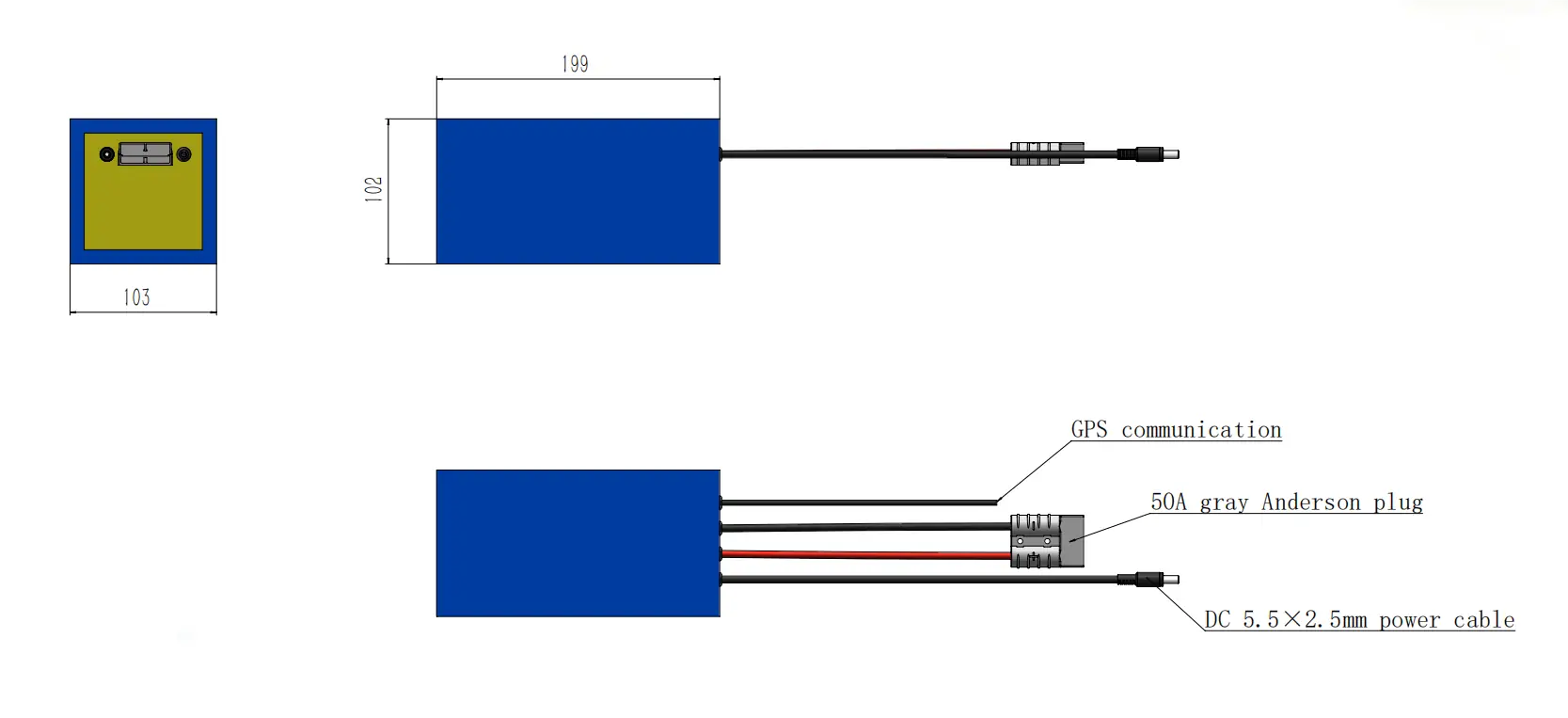

1.12.8V30Ah lifepo4 battery pack
It's made of BYD 4680 3.2V15Ah lifepo4 cells with 4S2P configuration.
Maximum Continuous Charging Current: 30A
Maximum Continuous Discharging Current: 5A
Weight: Approximately 2.9Kg
The dimension as below drawing:

2.14.7V58Ah NMC battery pack
It's made of CALB 3.67V 58Ah NMC cells with 4S1P configuration.
Maximum Continuous Charging Current: 29A
Maximum Continuous Discharging Current: 5A
Weight: Approximately 4.2Kg
The dimension as below drawing:

3.12.8V72Ah lifepo4 battery pack
It's made of CALB 3.2V 72Ah lifepo4 cells with 4S1P configuration.
Maximum Continuous Charging Current: 36A
Maximum Continuous Discharging Current: 5A
Weight: Approximately 7.8Kg
The dimension as below drawing:

4.12.8V72Ah lifepo4 battery pack
As our customer wants different dimension use the CALB 72Ah battery cells,so we designed this more flat and thickness packs for him.
The dimension as below drawing:

5.12.8V43.4Ah lifepo4 battery pack
It's made of BYD 3.2V 21.6Ah lifepo4 pouch cells with 4S2P configuration.
Maximum Continuous Charging Current: 21.7A
Maximum Continuous Discharging Current: 5A
Weight: Approximately 3.5Kg

The dimension as below drawing:

All the battery packs are designed with GPS.it can help the customer to check the SOC of the battery modules easily no matter how far.

Our customer was satisfied with the solution and placed order.now we are producing the packs and we will update the photos and more informations on our"order&shipment" column.

Edit by Alisa
