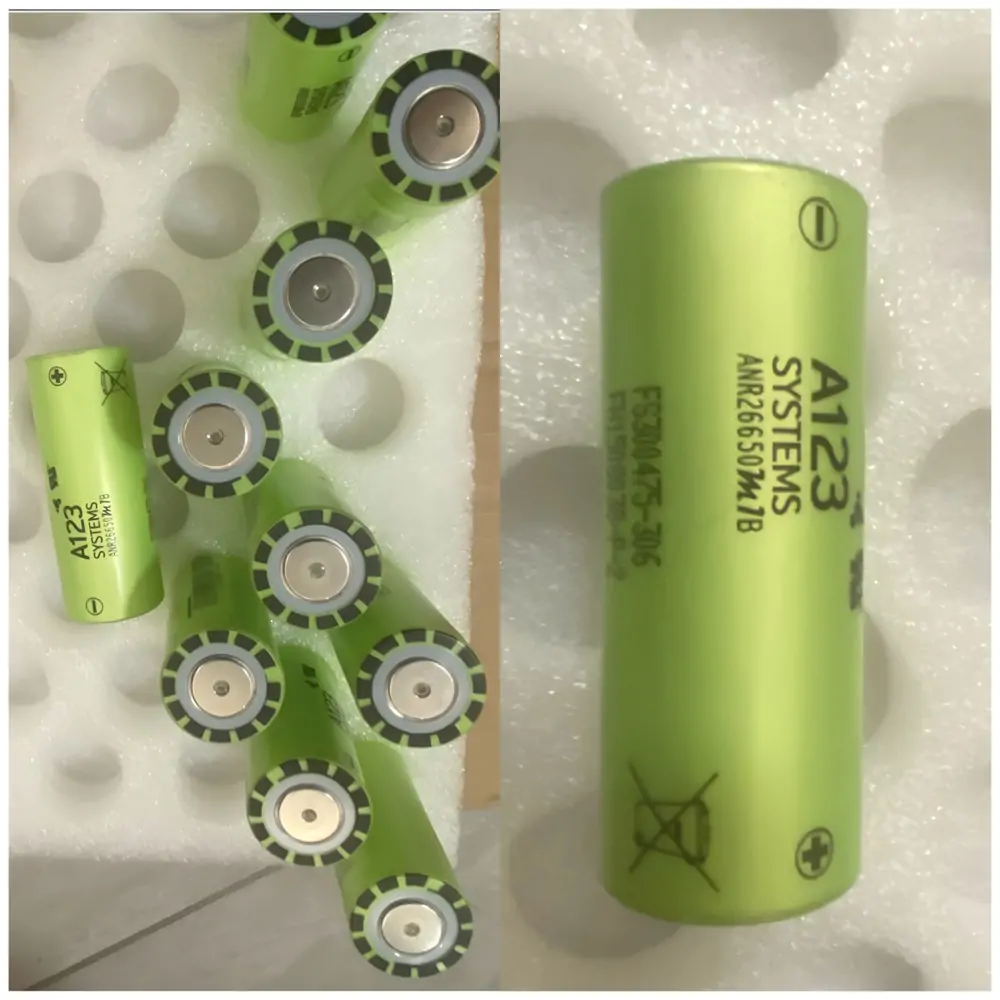

A123 LiFePO4 26650 ANR26650M1B 3.3V 2500mah Battery Cell

Nanophosphate High Power Lithium Ion Cell

Specification of A123 ANR26650 26650 LiFePO4 Battery Cell

A123’s high-performance Nanophosphate® lithium iron phosphate (LiFePO4) battery technology delivers high power and energy density combined with excellent safety performance and extensive life cycling in a lighter weight, more compact package. The cells have low capacity loss and impedance growth over time as well as high usable energy over a wide state of charge (SOC) range, allowing our systems to meet end-of-life power and energy requirements with minimal pack oversizing.

Key Features and benefits

-Excellent abuse tolerance and superior cycle life from A123's patented Nanophosphate lithium ion Chemistry
-High power with over 2,600W/kg and 5,800 W/L, 10 seconds, 50%SOC
-High usable energy over a wide state of charge (SOC) range

APPLICATIONS

COMMERCIAL SOLUTIONS

Advanced lead acid replacement batteries for: Datacenter UPS, Telecom backup, IT backup, Autonomously guided vehicles (AGVs), Industrial robotics and material handling equipment, Medical devices

GOVERNMENT SOLUTIONS

Military vehicles, Military power grids, Soldier power, Directed energy

GRID SOLUTIONS

Versatile, flexible and proven storage solutions for the grid:

TRANSPORTATION SOLUTIONS

Hybrid, plug-in hybrid and electric vehicle battery systems for: Commercial vehicles, Off-highway vehicles, Passenger vehicles

ANR26650 TECHNICAL DATA

Item	Parameter
Cell Dimensions	φ26*65mm
Cell Weight	76g
Cell Capacity(nominal/minimum) (0.5C Rate)	2.5/2.4Ah
Voltage(nominal)	3.3V
Internal Impedance (1kHz AC typical)	6mΩ
Power	2600W/kg
Recommended Standard Charge Method	2.5A to 3.6V CCCV, 60 min
Recommended Fast Charge Method to 80% SOC	10A to 3.6V CC, 12 min
Maximum Continuous Discharge	50A
Maximum Pulse Discharge (10 seconds)	120A
Cycle Life at 20A Discharge, 100% DOD	＞1000 cycles
Operating Temperature	-30℃ to 55℃
Storage Temperature	-40℃ to 60℃
