NPFC25.6-100 24V 25.6V 100Ah lifepo4 automotive battery



24v 100ah lifepo4 battery pack24v 100ah lifepo4 battery pack


Features



Longer Life


More than 2000 cycles at Lab test condition, longer serving time  ranges helps vendors to extend the product serving life and help final users to reduce the battery replacement costs.



Lighter Weight


It is equivalent to 40% of the weight of lead-acid battery, which is convenient for handling, taking and placing.


Super Safety


The olivine structure of lithium iron phosphate material is eliminated fundamentally the risk of explosion or combustion due to high temperature impact, overcharged or short circuit situation.  Besides, BMS protection ensures safe and efficient operation.



Optional functions



Heating Bluetooth SOC display



Specifications



Item

Parameter

Nominal Voltage

25.6V

Nominal Capacity

100Ah

Min Capacity

99Ah

Energy

2560Wh

Internal Resistance (AC)

50m

Self-discharge Rate

3%/Month

Cycle Life (100%DOD)

2,000 cycles

Charge Voltage

29.20.2V

Charge Mode

CC/CV

Charge Current

25A

Max. Charge Current

50A

Continues Discharge Current

100A

Max. Pulse Current

300A(50mS)

Discharge Cut-off Voltage

20V

Charge Temperature

0-55

Discharge Temperature

-20-60

Storage Temperature

-20-45

IP Class

IP65

Cell

2670-4Ah-3.2V

Configuration

8S25P

Dimension(L*W*H)

532*207*215mm

Material of case

ABS plastic

Weight

About 23.5Kg

Color

Black or other

Terminal

M8

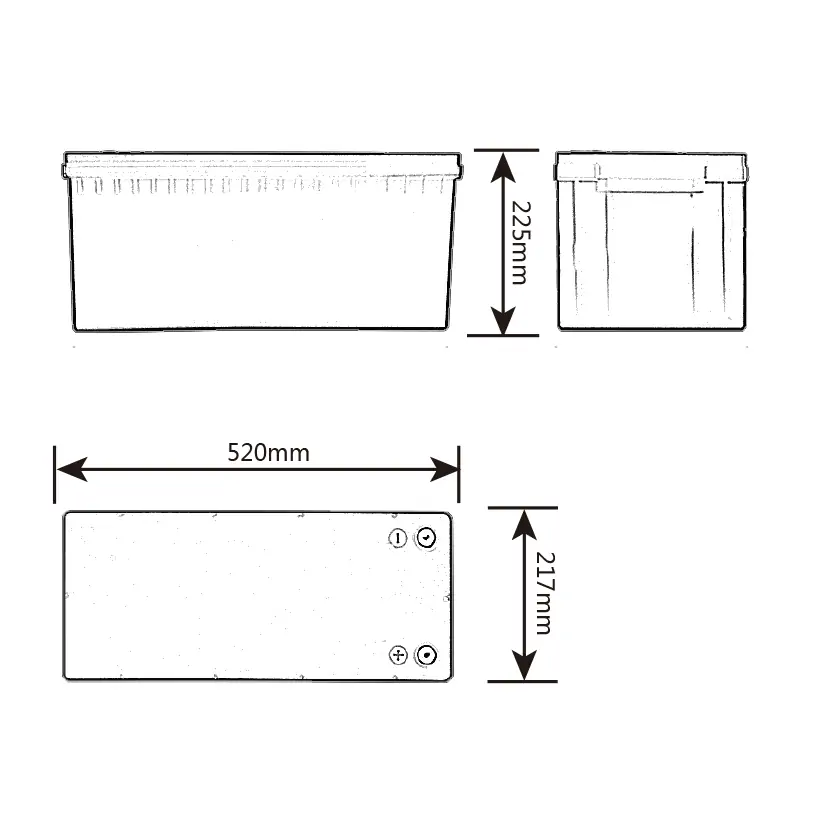

dimensions



Applications


Automive Solar Light / Marine / RV and Golf cart/  Energy Storage system



Charge and Discharge curve

Charge and Discharge curve


Temperature performance

Temperature performance



cycle life

Cycle life curve
