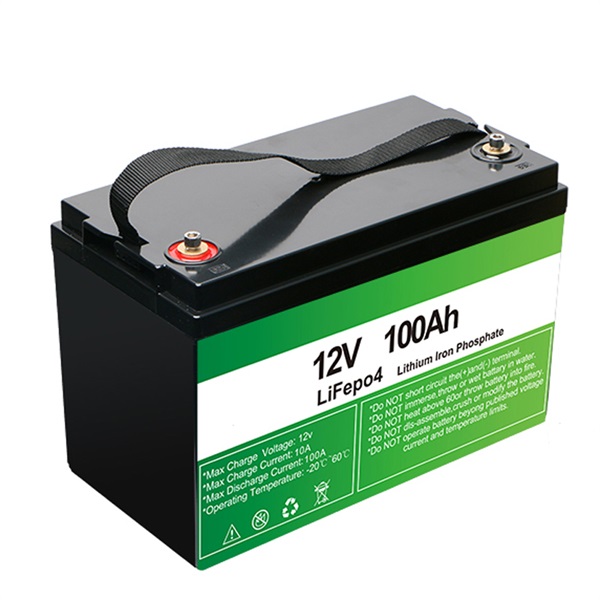

Lithium iron phosphate lifepo4 battery 12V 100ah



lifepo4 battery 12V 100ah

Battery type: LiFePO4 battery pack
Model number: EVL128100
Normal voltage: 12.8v
Capacity: 100Ah
Charge temperature: 0¡æ~45¡æ
Discharge temperature: -20¡æ~60¡æ

Size: 330*173*216 mm

Weight: 13kg



Key Features of LiFePO4 Battery 12V 100Ah :



1) Longer Cycle Life:

Longer cycle life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

2) Lighter Weight:

About 50% of the weight of a comparable lead acid battery.


3) Higher Power:

Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.


4) Safety:

Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation



details of 12v 100ah lifepo4 batterydimensions of 12v 100ah lifepo4 battery

dimension of 12v 100ah lifepo4 battery


Specifications:



Item

Parameters

Nominal Voltage

12.8V

Nominal Capacity

100Ah

Cycle Life

¡Ý2000 cycles @ 1C   100% DOD

Charge Voltage

14.6¡À0.2V

Max. Charge Current

50A (can be customized)

Max. discharge Current

100A (can be customized£©

Discharge Cut-off Voltage

10V

Charge Temperature

0¡æ to 45¡æ

Discharge Temperature

-20¡æ to 60¡æ

Approx. Dimensions

330*173*216mm

Approx. Weight

13kg


Applications:


This 12V 100Ah lifepo4 battery pack can be widely used in Wheelchairs and scooters, Solar/wind energy storage, Back-up power for small UPS, Golf trolleys & buggies, Kid electric cars, etc. applications.
