REPT CB51-150Ah 3.2V 150Ah LiFePO4 Battery Prismatic Cell

Reliable Power: LiFePO4 Battery & LiFePO4 cells
REPT CB51-150Ah 3.2V 150Ah LiFePO4 Battery Prismatic Cell
Description

Brand NEW Grade A REPT 3.2V 150Ah Prismatic LiFePO4 Battery Cells for sale, with complete QR code, A new look, excellent & stable performance, super long cycle life, high energy density, high charge/discharge rate for DIY, Solar system, energy stroage system(ESS), BEV, RV, boat, UPS, etc.



Specification

Cell Model: CB51-150Ah
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal Voltage: 3.2V
Operational Voltage: 2.5V – 3.65V (0棼T≤55) / 2.0-3.65V (-30≤T≤0)
Nominal Capacity: 150Ah
Internal Impedance: ≤0.50mΩ
Weight: 2.80±0.08kg
Dimensions (mm): 206.8(T)*174.0(W)*36.3(T)±0.5mm
Cycle Life(80%DOD): ≥3000 Times @ 80%DOD
Standard Charging Current: 75A, 25±2
Maximum Continuous Charging Current: 150A, 25±2棬SOC≤80%
Maximum Charging Current: 300A, @60sSOC ≤70%
Standard Discharging Current: 75A, 25±2
Maximum Continuous Discharging Current: 150A, 25±2
Maximum Pulse Discharging Current: 450A, 25±2, ≥30%SOC, 60s
Charging Temperature: 0~55
Discharging Temperature: -30~55


Overall dimension

dimensiondimension

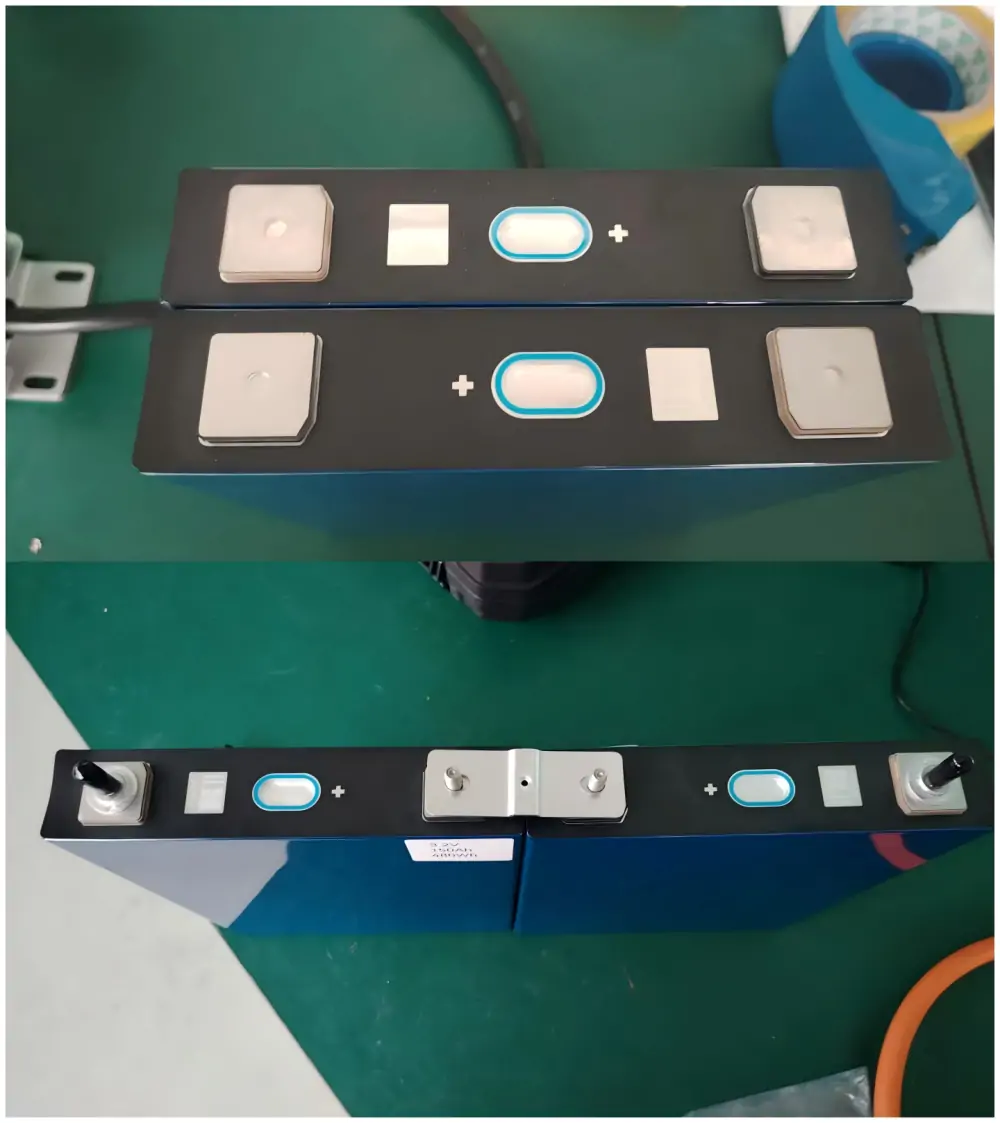

details

CAUTION!

1) Risk of fire, explosion, and burns. Do not disassemble, crush, heat the cell or dispose it
2) Keep the cell out of reach of children and don’t remove the original package before use. Dispose the used battery according to local recycling or waste disposition regulations;
3) Replace the battery manufactured by the same manufacture only. Mixed use of battery
from other manufacture might cause fire and explosion;
4) Do not throw the battery into water or make it wet;
5) Do not connect positive and negatives with metal cover;
6) Do not make the cell short circuit, over-charge or over-discharge;
7) Do not use or store the cell near the heat source (such as fire or heater):
8) Do not connect the position (+) and negative (-) terminals in the opposite way;
9) Do not put the battery together with coin, metal jewelry and other metal objects;
10) Do not puncture the battery by nail or other sharp objects. Hammering and crush the battery is forbidden;
11) Do not weld the battery directly;
12) Do not disassemble or modify the battery in any way;
13)Do not hit, throw or subject the battery to mechanical vibration and free fall;
14) Mixed use of different types, brand of battery are forbidden;
15) Do not connect the negative pole with the shell which is positive;
16) Stop use the battery and relocate the battery to a safe place it if battery gives off peculiar smell, temperature increase, deforms, color change or any other abnormal phenomena.
17)If battery leaks, and electrolyte enters into eyes, do not rub. Rinse with clean running water, and seek medical assistance immediately;
18)If battery catch fire, use dry powder, foam fire extinguisher or sand to extinguish flames and remove it from the operating environment;
